071029 DODGE - P2B520-ISN-090MLR

Brand - DODGE
Item Number - 071029 DODGE - P2B520-ISN-090MLR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22220
Shaft Size (mm) - 90
Description - P2B520-ISN-090MLR

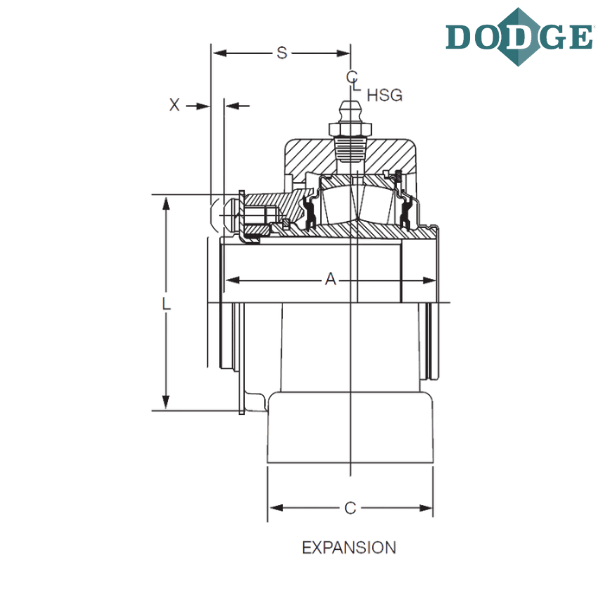

Length Through Bore (A) mm - 120
Overall Length (B) mm - 379.8
Width (C) mm - 110.2
Bolt to Bolt Minimum Distance (D min) mm - 292.8
Bolt to Bolt Maximum Distance (D max) mm - 327
F-Bolt Diameter - M24
G (mm) - 43.1
H (mm) - 40
Overall Height (J) mm - 218.3
L (mm) - 138.7
Base to Center Height (M) mm - 112
S (mm) - 82.3
T (mm) - 8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
L - Expansion
R - Trident rubbing seal

** Images are for representation purposes only
