071021 DODGE - P2B511-ISN-050MLR

Brand - DODGE
Item Number - 071021 DODGE - P2B511-ISN-050MLR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (mm) - 50
Description - P2B511-ISN-050MLR

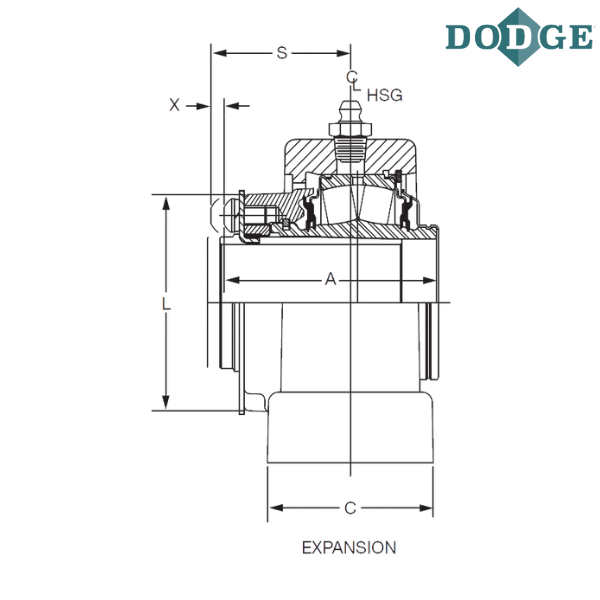

Length Through Bore (A) mm - 72.6
Overall Length (B) mm - 253.9
Width (C) mm - 70.2
Bolt to Bolt Minimum Distance (D min) mm - 190
Bolt to Bolt Maximum Distance (D max) mm - 215.9
F-Bolt Diameter - M16
G (mm) - 31
H (mm) - 28
Overall Height (J) mm - 124.5
L (mm) - 81
Base to Center Height (M) mm - 70
S (mm) - 51.4
T (mm) - 6.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
L - Expansion
R - Trident rubbing seal

** Images are for representation purposes only
