071016 DODGE - P2B528-ISN-125MFR

Brand - DODGE
Item Number - 071016 DODGE - P2B528-ISN-125MFR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (mm) - 125
Description - P2B528-ISN-125MFR

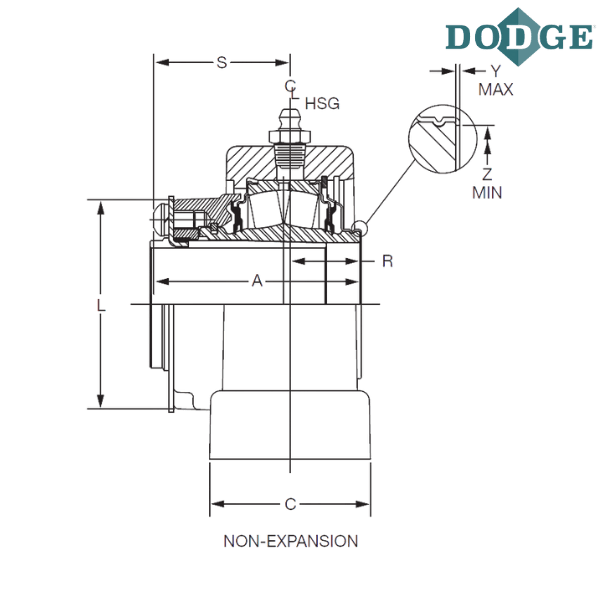

Length Through Bore (A) mm - 152
Overall Length (B) mm - 500
Width (C) mm - 150.2
Bolt to Bolt Minimum Distance (D min) mm - 400
Bolt to Bolt Maximum Distance (D max) mm - 427
F-Bolt Diameter - M30
G (mm) - 48.5
H (mm) - 50
Overall Height (J) mm - 290.4
L (mm) - 191.8
Base to Center Height (M) mm - 150
R (mm) - 48.6
S (mm) - 103.2
T (mm) - 10
Y (mm) - 1.02
Z (mm) - 148.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
F - Non-expansion
R - Trident rubbing seal

** Images are for representation purposes only
