071014 DODGE - P2B524-ISN-110MFR

Brand - DODGE
Item Number - 071014 DODGE - P2B524-ISN-110MFR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22222
Shaft Size (mm) - 110
Description - P2B524-ISN-110MFR

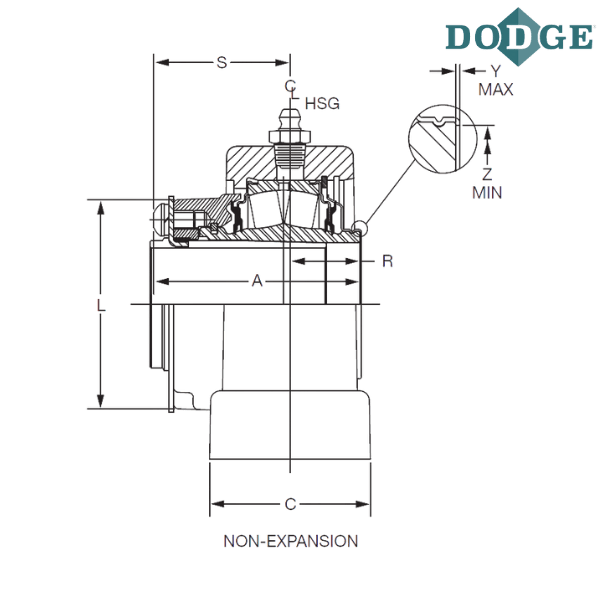

Length Through Bore (A) mm - 133
Overall Length (B) mm - 410
Width (C) mm - 120
Bolt to Bolt Minimum Distance (D min) mm - 314.5
Bolt to Bolt Maximum Distance (D max) mm - 356
F-Bolt Diameter - M24
G (mm) - 46.8
H (mm) - 45
Overall Height (J) mm - 260.7
L (mm) - 161.3
Base to Center Height (M) mm - 140
R (mm) - 44.4
S (mm) - 88.4
T (mm) - 10
Y (mm) - 1.02
Z (mm) - 127
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
F - Non-expansion
R - Trident rubbing seal

** Images are for representation purposes only
