071011 DODGE - P2B519-ISN-085MFR

Brand - DODGE
Item Number - 071011 DODGE - P2B519-ISN-085MFR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (mm) - 85
Description - P2B519-ISN-085MFR

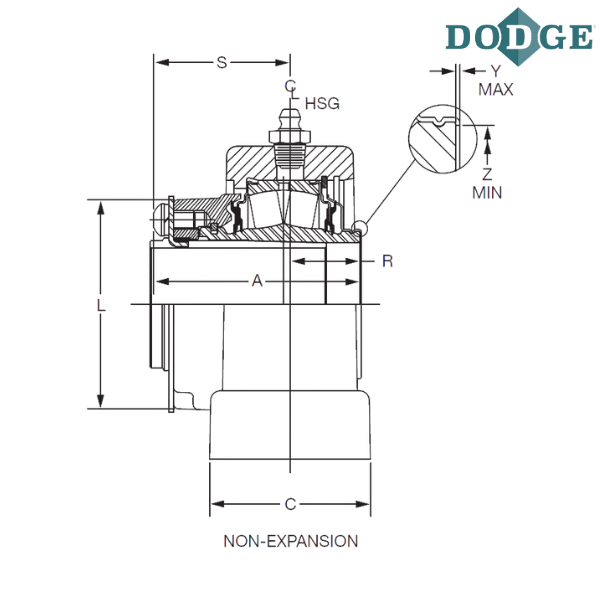

Length Through Bore (A) mm - 106
Overall Length (B) mm - 345
Width (C) mm - 100.2
Bolt to Bolt Minimum Distance (D min) mm - 264.2
Bolt to Bolt Maximum Distance (D max) mm - 296.1
F-Bolt Diameter - M20
G (mm) - 37.9
H (mm) - 35
Overall Height (J) mm - 205.2
L (mm) - 124.7
Base to Center Height (M) mm - 112
R (mm) - 34.5
S (mm) - 71.4
T (mm) - 7
Y (mm) - 0.76
Z (mm) - 102.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
F - Non-expansion
R - Trident rubbing seal

** Images are for representation purposes only
