071007 DODGE - P2B515-ISN-065MFR

Brand - DODGE
Item Number - 071007 DODGE - P2B515-ISN-065MFR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (mm) - 65
Description - P2B515-ISN-065MFR

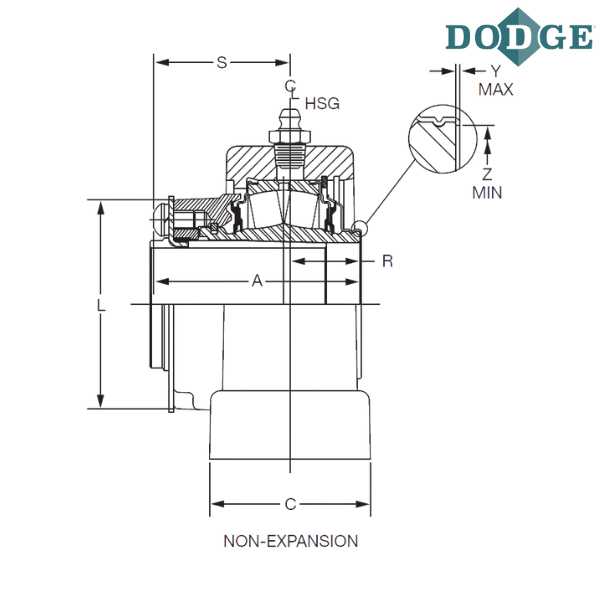

Length Through Bore (A) mm - 88.9
Overall Length (B) mm - 280.1
Width (C) mm - 80.1
Bolt to Bolt Minimum Distance (D min) mm - 215
Bolt to Bolt Maximum Distance (D max) mm - 236
F-Bolt Diameter - M16
G (mm) - 28.5
H (mm) - 30
Overall Height (J) mm - 156
L (mm) - 106.7
Base to Center Height (M) mm - 80
R (mm) - 26.9
S (mm) - 61.7
T (mm) - 7
Y (mm) - 0.76
Z (mm) - 88.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
F - Non-expansion
R - Trident rubbing seal

** Images are for representation purposes only
