071004 DODGE - P2B511-ISN-050MFR

Brand - DODGE
Item Number - 071004 DODGE - P2B511-ISN-050MFR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (mm) - 50
Description - P2B511-ISN-050MFR

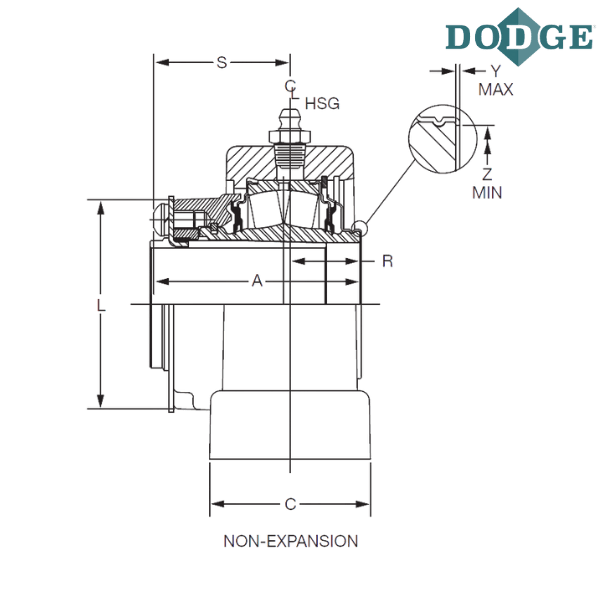

Length Through Bore (A) mm - 72.6
Overall Length (B) mm - 253.9
Width (C) mm - 70.2
Bolt to Bolt Minimum Distance (D min) mm - 190
Bolt to Bolt Maximum Distance (D max) mm - 215.9
F-Bolt Diameter - M16
G (mm) - 31
H (mm) - 28
Overall Height (J) mm - 124.5
L (mm) - 81
Base to Center Height (M) mm - 70
R (mm) - 21.1
S (mm) - 51.4
T (mm) - 6.5
Y (mm) - 0.51
Z (mm) - 58.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
F - Non-expansion
R - Trident rubbing seal

** Images are for representation purposes only
