071000 DODGE - P2B507-ISN-030MFR

Brand - DODGE
Item Number - 071000 DODGE - P2B507-ISN-030MFR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22208
Shaft Size (mm) - 30
Description - P2B507-ISN-030MFR

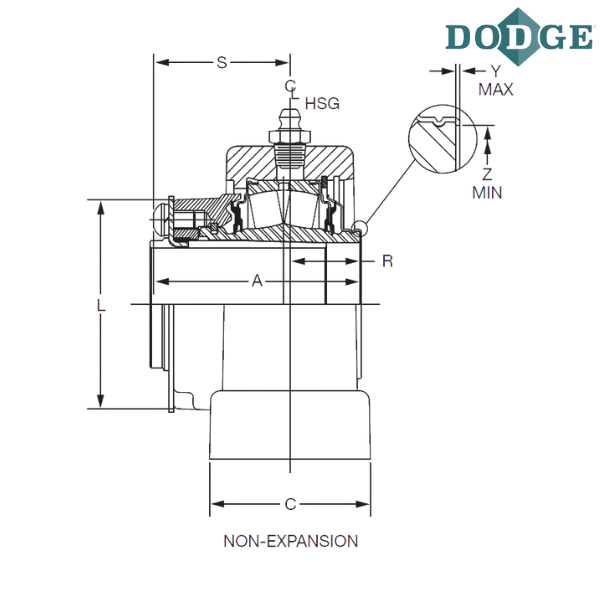

Length Through Bore (A) mm - 66.7
Overall Length (B) mm - 184.9
Width (C) mm - 52
Bolt to Bolt Minimum Distance (D min) mm - 145
Bolt to Bolt Maximum Distance (D max) mm - 155
F-Bolt Diameter - M12
G (mm) - 20
H (mm) - 22
Overall Height (J) mm - 100.9
L (mm) - 67.6
Base to Center Height (M) mm - 50
R (mm) - 22.6
S (mm) - 44.1
T (mm) - 4
Y (mm) - 0.51
Z (mm) - 45.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
F - Non-expansion
R - Trident rubbing seal

** Images are for representation purposes only
