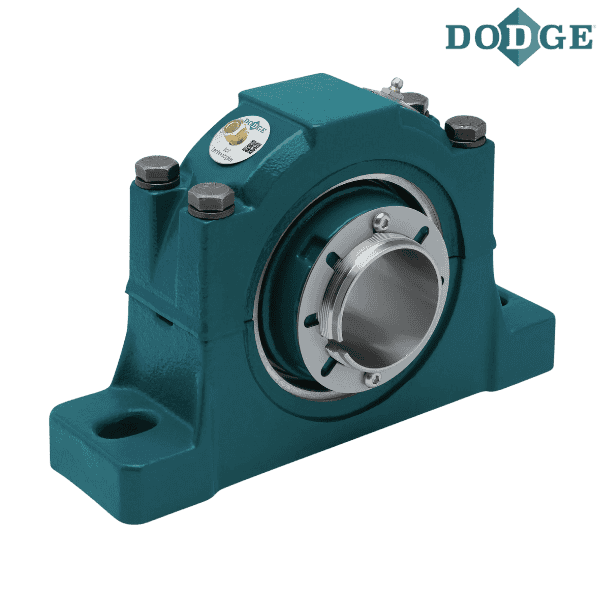

070953 DODGE - P2B517-ISAF-215R

Brand - DODGE
Item Number - 070953 DODGE - P2B517-ISAF-215R
Category - IMPERIAL ISAF - Inch 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 2.9375
Part Name - P2B517-ISAF-215R
SAF Series - 517

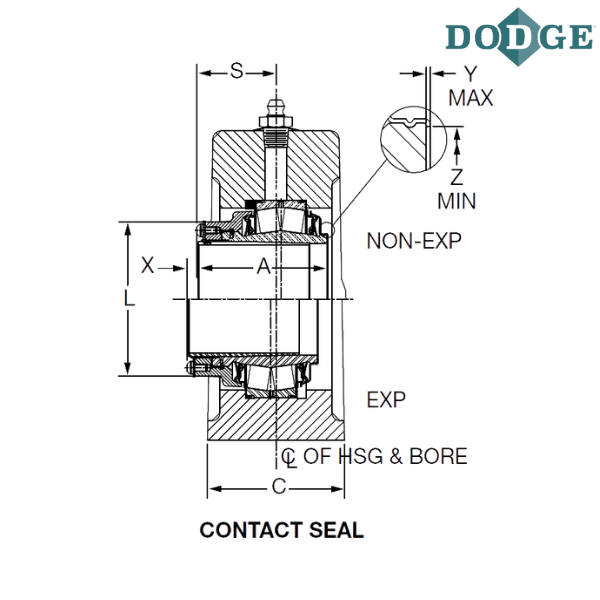

Length Through Bore (A) inch - 3.5

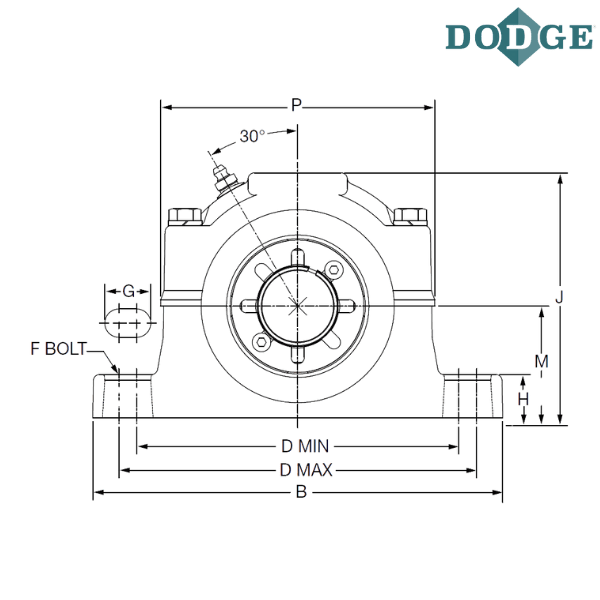

Overall Length (B) inch - 12.59
Width (C) inch - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.88
Bolt to Bolt Maximum Distance (D max) inch - 11
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.31
H (inch) - 1.25
Overall Height (J) inch - 7.75
L (inch) - 4.28
Base to Center Height (M) inch - 3.75
P (inch) - 8.31
S (inch) - 2.16
Expansion (X) inch - 0.234375
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base Cast Iron
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
