070863 DODGE - F4S-S2-207LE

Brand - DODGE
Item Number - 070863 DODGE - F4S-S2-207LE
Category - S-2000 Flange Bearing - Square in Labyrinth Seal (Expansion)
Bearing Series - 22213
Shaft Size (inch) - 2.4375
Part Name - F4S-S2-207LE

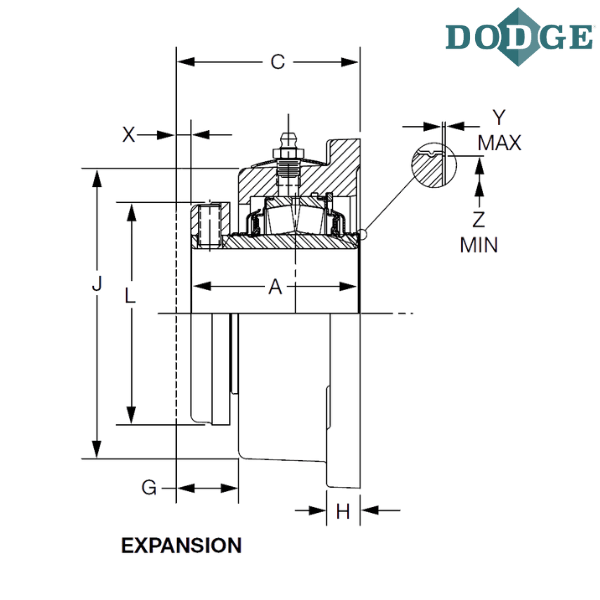

Length Through Bore (A) inch - 3.2
Overall Length (B) inch - 6.13
Thickness (C) inch - 3.52
Bolt Center to Center Length (D) inch - 4.78
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.14
H (inch) - 0.64
J (inch) - 5.63
K (inch) - 6.75
L (inch) - 4.06
N (inch) - 3.41
Total Expansion (X) inch - 0.25
Y (inch) - 0.025
Z (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
