070861 DODGE - F4S-S2-203LE

Brand - DODGE
Item Number - 070861 DODGE - F4S-S2-203LE
Category - S-2000 Flange Bearing - Square in Labyrinth Seal (Expansion)
Bearing Series - 22211
Shaft Size (inch) - 2.1875
Part Name - F4S-S2-203LE

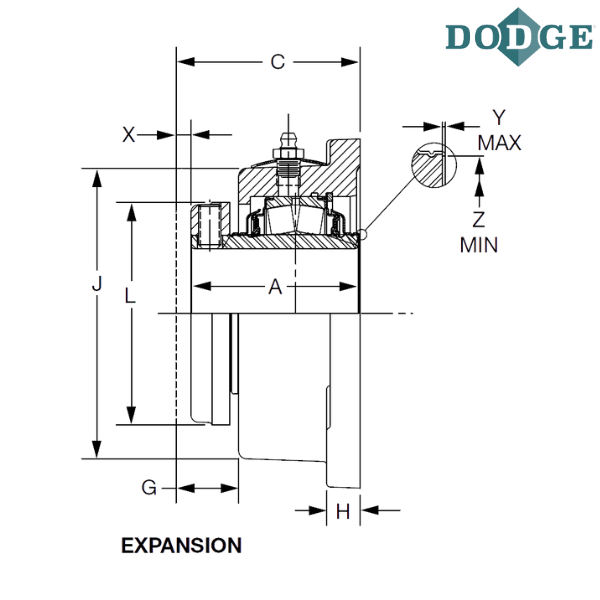

Length Through Bore (A) inch - 2.94
Overall Length (B) inch - 5.88
Thickness (C) inch - 3.25
Bolt Center to Center Length (D) inch - 4.52
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.2
H (inch) - 0.56
J (inch) - 5.02
K (inch) - 6.38
L (inch) - 3.75
N (inch) - 3.09
Total Expansion (X) inch - 0.25
Y (inch) - 0.025
Z (inch) - 2.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
