070854 DODGE - F4S-S2-107LE

Brand - DODGE
Item Number - 070854 DODGE - F4S-S2-107LE
Category - S-2000 Flange Bearing - Square in Labyrinth Seal (Expansion)
Bearing Series - 22208
Shaft Size (inch) - 1.4375
Part Name - F4S-S2-107LE

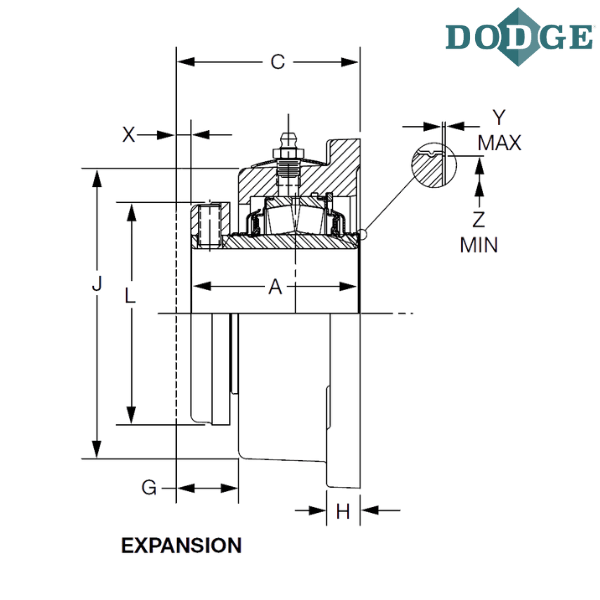

Length Through Bore (A) inch - 2.53
Overall Length (B) inch - 4.75
Thickness (C) inch - 2.77
Bolt Center to Center Length (D) inch - 3.53
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.99
H (inch) - 0.5
J (inch) - 3.81
K (inch) - 5
L (inch) - 2.75
N (inch) - 2.48
Total Expansion (X) inch - 0.1875
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
