070845 DODGE - TPHU-S2-415RE

Brand - DODGE
Item Number - 070845 DODGE - TPHU-S2-415RE
Category - TPHU Take-Up Bearing in Trident Seal (Expansion)
Bearing Inch - 22226
Shaft Size (inch) - 4.9375
Take-Up Frame - TPHU180
Part Name - TPHU-S2-415RE

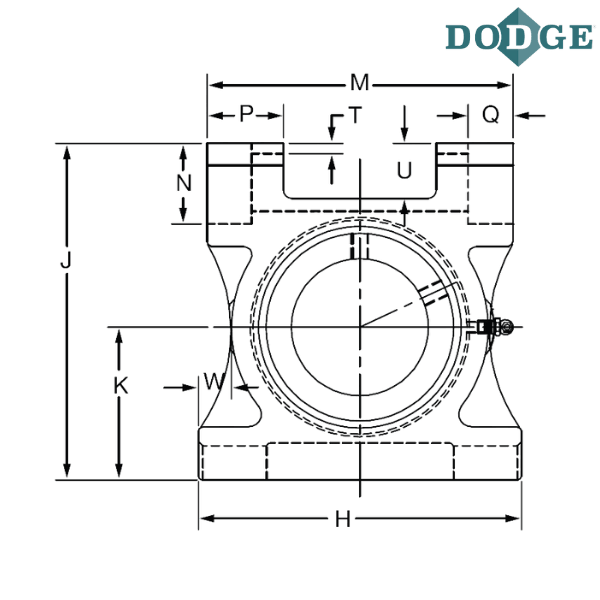

Length Through Bore (A) inch - 6.91
B (inch) - 3.5
C (inch) - 0.81
D (inch) - 12.44
E (inch) - 6.06
F (inch) - 1.81
G (inch) - 0.69
H (inch) - 14.38
J (inch) - 14.63
K (inch) - 7.19
L (inch) - 7.45
M (inch) - 13.88
N (inch) - 2.38
P (inch) - 3.94
Q (inch) - 1.31
R (inch) - 5.88
S (inch) - 3.66
T (inch) - 0.38
U (inch) - 1.94
V (inch) - 4.45
W (inch) - 1.42

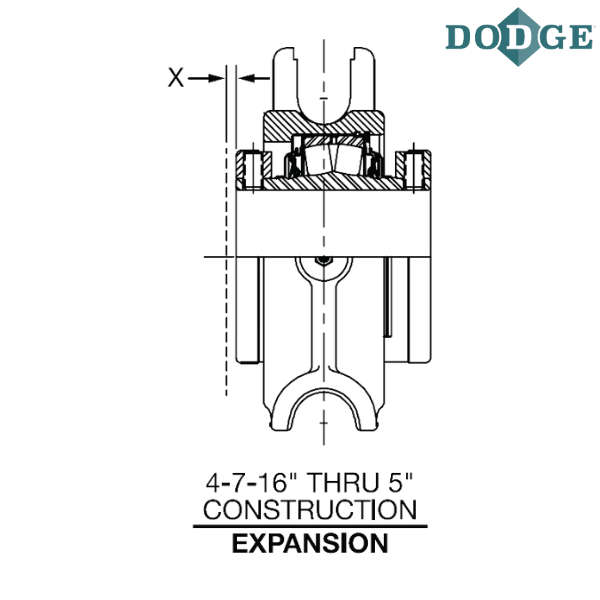

Total Exp. (X) inch - 0.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TPHU - TPHU Take-up Bearing For Use In TPHU Or Top Angle Take-Up Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

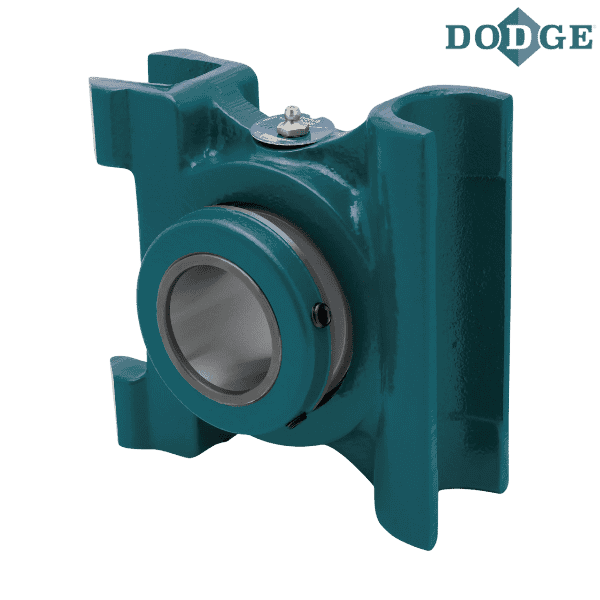

** Images are for representation purposes only
