070831 DODGE - TPHU-S2-203RE

Brand - DODGE
Item Number - 070831 DODGE - TPHU-S2-203RE

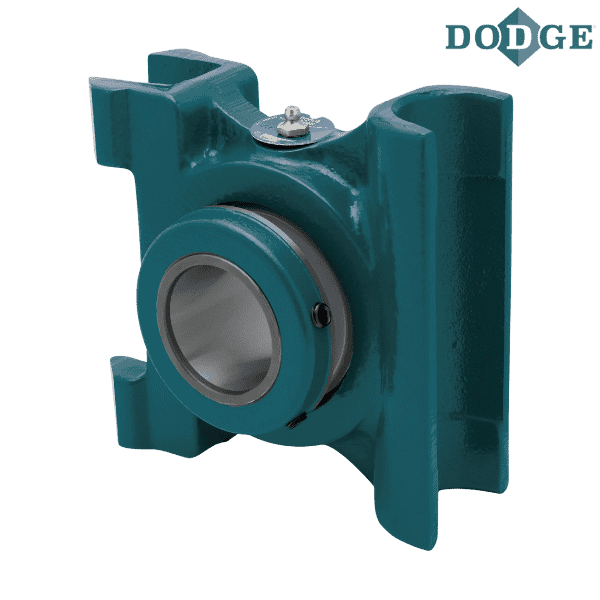

Category - TPHU Take-Up Bearing in Trident Seal (Expansion)
Bearing Inch - 22211
Shaft Size (inch) - 2.1875
Take-Up Frame - TP30
Take-Up Frame - TPHU120
Part Name - TPHU-S2-203RE

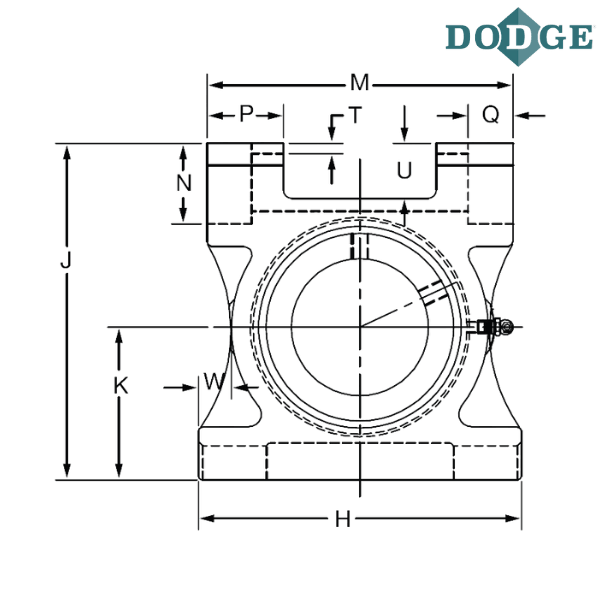

Length Through Bore (A) inch - 2.94
B (inch) - 2.75
C (inch) - 0.81
D (inch) - 6.25
E (inch) - 3
F (inch) - 1.44
G (inch) - 0.56
H (inch) - 7.5
J (inch) - 7.63
K (inch) - 3.5
L (inch) - 3.75
M (inch) - 7
N (inch) - 1.94
P (inch) - 1.75
Q (inch) - 1.06
R (inch) - 3.39
S (inch) - 2.02
T (inch) - 0.31
U (inch) - 1.56
V (inch) - 2.25
W (inch) - 0.94

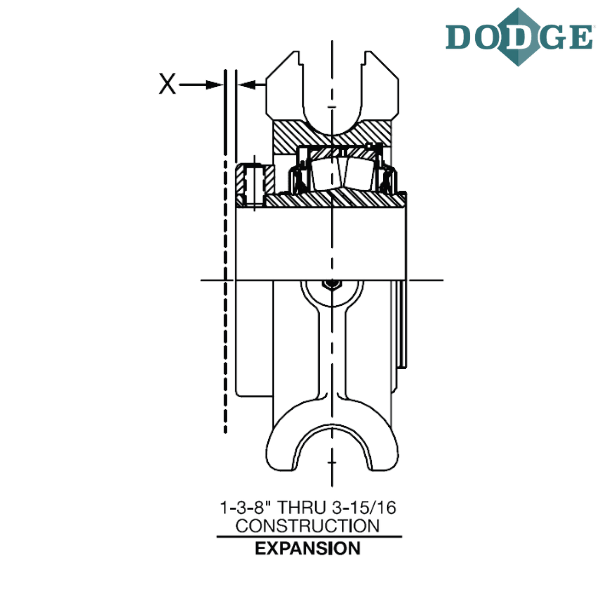

Total Exp. (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TPHU - TPHU Take-up Bearing For Use In TPHU Or Top Angle Take-Up Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
