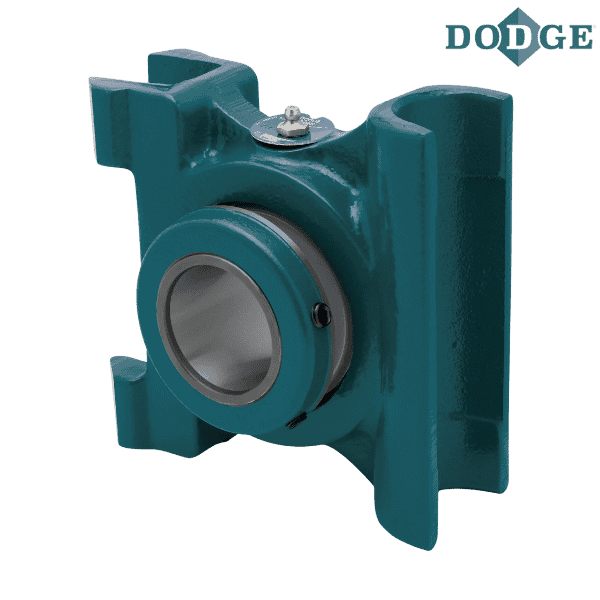

070825 DODGE - TPHU-S2-407R

Brand - DODGE
Item Number - 070825 DODGE - TPHU-S2-407R
Category - TPHU Take-Up Bearing in Trident Seal (Non-Expansion)
Bearing Inch - 22222
Shaft Size (inch) - 4.4375
Take-Up Frame - TPHU170
Part Name - TPHU-S2-407R

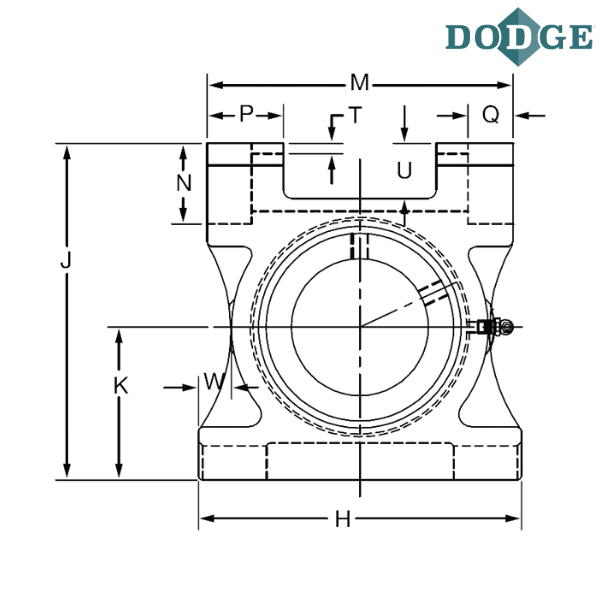

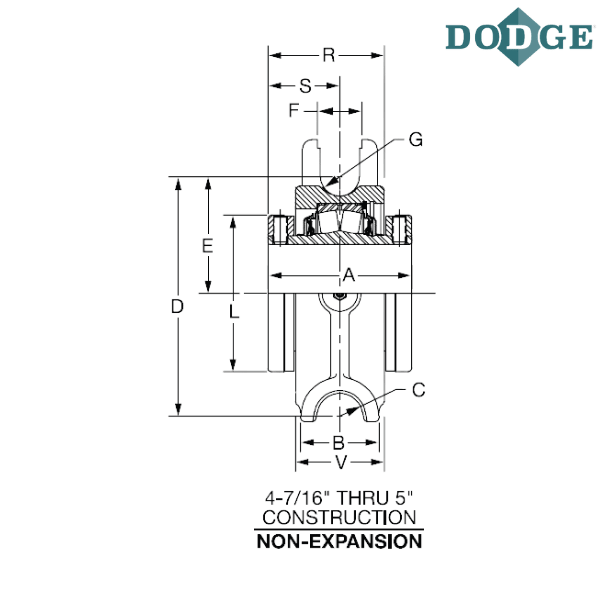

Length Through Bore (A) inch - 6.53
B (inch) - 3.38
C (inch) - 0.81
D (inch) - 10.19
E (inch) - 5
F (inch) - 1.56
G (inch) - 0.69
H (inch) - 11
J (inch) - 12.38
K (inch) - 6
L (inch) - 6.45
M (inch) - 10.5
N (inch) - 2.44
P (inch) - 2.31
Q (inch) - 1.31
R (inch) - 5.45
S (inch) - 3.45
T (inch) - 0.38
U (inch) - 1.94
V (inch) - 4
W (inch) - 0.86
Y (inch) - 0.036
Z (inch) - 5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TPHU - TPHU Take-up Bearing For Use In TPHU Or Top Angle Take-Up Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
