070812 DODGE - TPHU-S2-200R

Brand - DODGE
Item Number - 070812 DODGE - TPHU-S2-200R

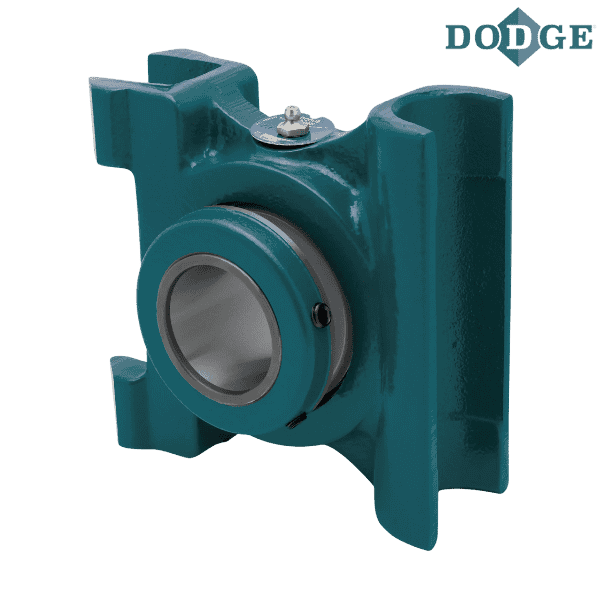

Category - TPHU Take-Up Bearing in Trident Seal (Non-Expansion)
Bearing Inch - 22210
Shaft Size (inch) - 2
Take-Up Frame - TP10
Take-Up Frame - TPHU110
Part Name - TPHU-S2-200R

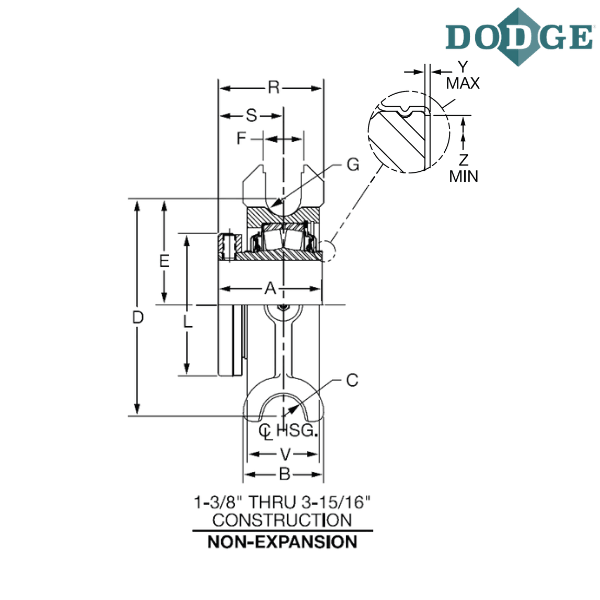

Length Through Bore (A) inch - 2.84
B (inch) - 2.38
C (inch) - 0.81
D (inch) - 5.19
E (inch) - 2.38
F (inch) - 1.06
G (inch) - 0.44

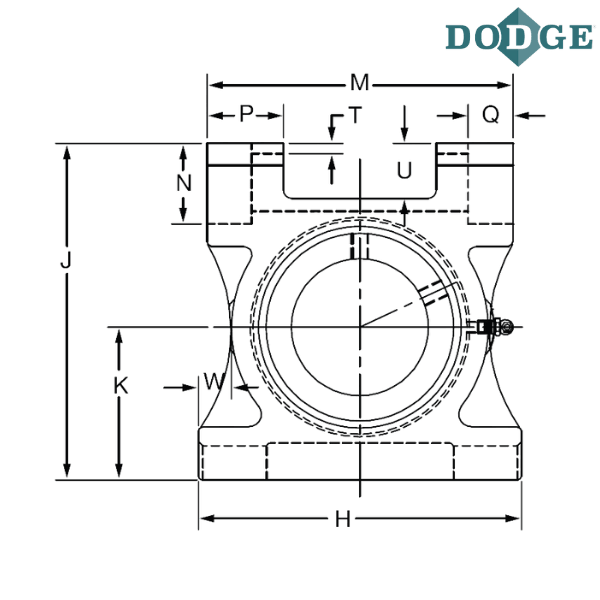

H (inch) - 6.5
J (inch) - 6.44
K (inch) - 3.06
L (inch) - 3.44
M (inch) - 6
N (inch) - 1.66
P (inch) - 1.25
Q (inch) - 0.81
R (inch) - 3.19
S (inch) - 2
T (inch) - 0.31
U (inch) - 1.06
V (inch) - 2
W (inch) - 0.88
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TPHU - TPHU Take-up Bearing For Use In TPHU Or Top Angle Take-Up Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
