070792 DODGE - WSTU-S2-215RE

Brand - DODGE
Item Number - 070792 DODGE - WSTU-S2-215RE
Category - S-2000 Wide Slot Take-Up Bearing in Trident Seal (Expansion)
Bearing Series - 22215
Shaft Size (inch) - 2.9375
Take-Up Frame - CP-515
Part Name - WSTU-S2-215RE

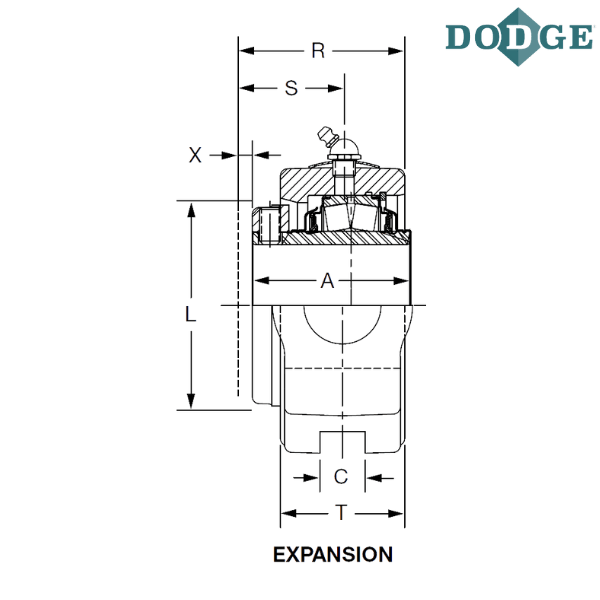

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 8.88
C (inch) - 1.81
D (inch) - 4.5
E (inch) - 5.75
F (inch) - 1.625
G (inch) - 1.13
H (inch) - 1.5
J (inch) - 4.88
K (inch) - 2.75
L (inch) - 4.7
M (inch) - 5.94
N (inch) - 6.69
R (inch) - 3.75
S (inch) - 2.41
T (inch) - 2.69
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-Up Bearing For Use In Center-Pull Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
