070786 DODGE - WSTU-S2-200RE

Brand - DODGE
Item Number - 070786 DODGE - WSTU-S2-200RE
Category - S-2000 Wide Slot Take-Up Bearing in Trident Seal (Expansion)
Bearing Series - 22210
Shaft Size (inch) - 2
Take-Up Frame - CP-400
Part Name - WSTU-S2-200RE

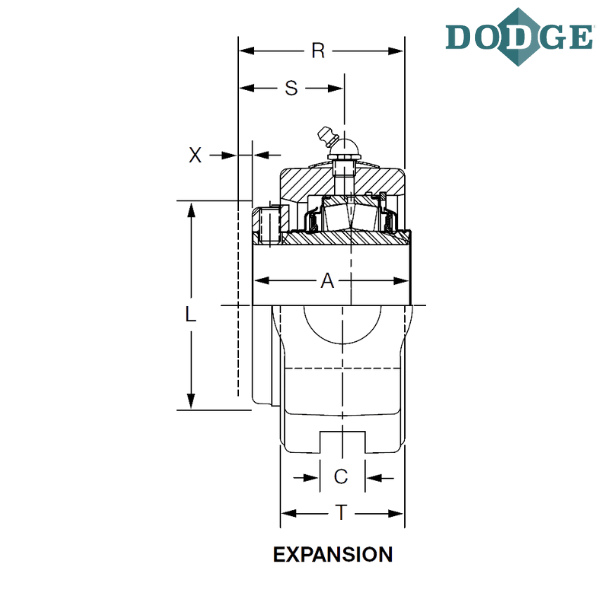

Length Through Bore (A) inch - 2.84
Overall Length (B) inch - 6.19
C (inch) - 0.69
D (inch) - 3.63
E (inch) - 3.94
F (inch) - 1.125
G (inch) - 0.94
H (inch) - 0.75
J (inch) - 3.31
K (inch) - 1.94
L (inch) - 3.44
M (inch) - 4
N (inch) - 4.75
R (inch) - 2.94
S (inch) - 1.94
T (inch) - 2
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-Up Bearing For Use In Center-Pull Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
