070687 DODGE - FC-S2-307RE

Brand - DODGE
Item Number - 070687 DODGE - FC-S2-307RE
Category - S-2000 Piloted Flange with Type E Dimensions in Trident Seal (Expansion)
Bearing Series - 22218
Shaft Size (inch) - 3.4375
Part Name - FC-S2-307RE

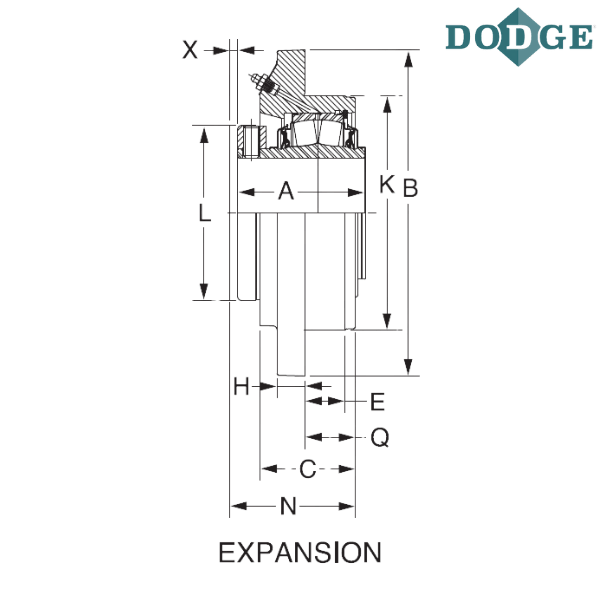

Length Through Bore (A) inch - 4.01
Overall Length (B*) inch - 10.25
C * (inch) - 3
Bolt Center to Center Length (D) inch - 6.09
DD (inch) - 8.63
E * (inch) - 1.26
F-Bolt Diameter (inch) - 0.75
H * (inch) - 0.94
K ** (inch) - 7.375
L (inch) - 5.5
M (inch) - 3/4-10
N (inch) - 3.88
Q * (inch) - 1.52
Total Exp. (X) inch - 0.25
Set Screw Size (inch) - 0.5
S/S Torque in/lb - 620
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* Reference Dimension Only
** +.000/-.002

*** Images are for representation purposes only
