070646 DODGE - FC-S2-108R

Brand - DODGE
Item Number - 070646 DODGE - FC-S2-108R
Category - S-2000 Piloted Flange in Trident Seal (Non-Expansion)
Bearing Series - 22208
Shaft Size (inch) - 1.5
Part Name - FC-S2-108R

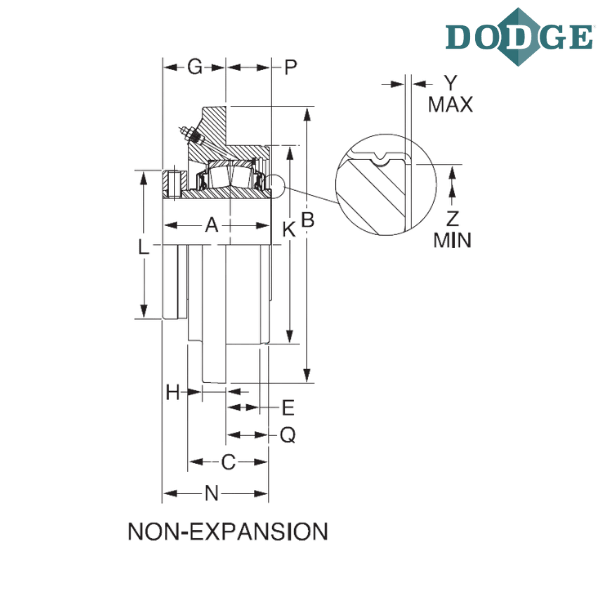

Length Through Bore (A) inch - 2.53
Overall Length (B) inch - 5.25
C (inch) - 1.84
Bolt Center to Center Length (D) inch - 3.09
DD (inch) - 4.38
E (inch) - 0.75
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.31
H (inch) - 0.5
K * (inch) - 3.63
L (inch) - 2.75
M (inch) - 3/8-16
N (inch) - 2.55
P (inch) - 1.22
Q (inch) - 1.22
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

* +.000/-.002”

** Images are for representation purposes only
