070533 DODGE - F4R-S2-207LE

Brand - DODGE
Item Number - 070533 DODGE - F4R-S2-207LE
Category - S-2000 Flange Bearing - Round in Labyrinth Seal (Expansion)
Bearing Series - 22213
Shaft Size (inch) - 2.4375
Part Name - F4R-S2-207LE

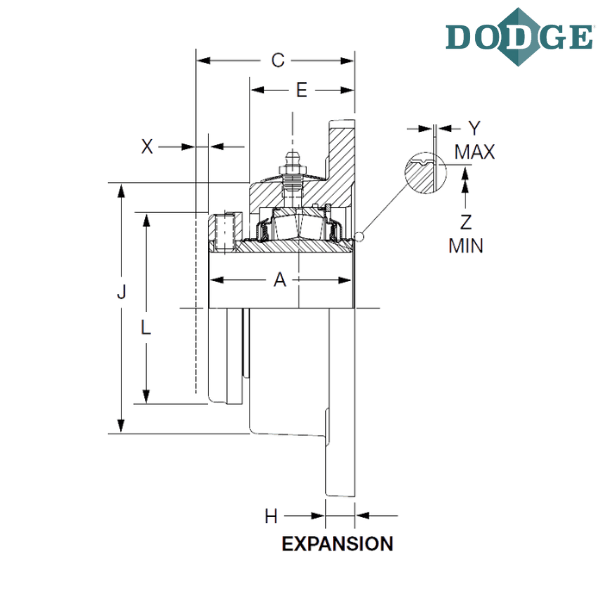

A (inch) - 3.2
B (inch) - 7.75
C (inch) - 3.5
D (inch) - 4.77
DD (inch) - 6.75
E (inch) - 2.38
Bolt Diameter (F) inch - 0.625**
H (inch) - 0.77
J (inch) - 5.5
L (inch) - 406
Total Expansion (X) inch - 0.25
Y (inch) - 0.025
Z (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4-Bolt, Cast Iron, Round
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** 4 Equally spaced bolt holes

*** Images are for representation purposes only
