070528 DODGE - F4R-S2-112LE

Brand - DODGE
Item Number - 070528 DODGE - F4R-S2-112LE
Category - S-2000 Flange Bearing - Round in Labyrinth Seal (Expansion)
Bearing Series - 22209
Shaft Size (inch) - 1.75
Part Name - F4R-S2-112LE

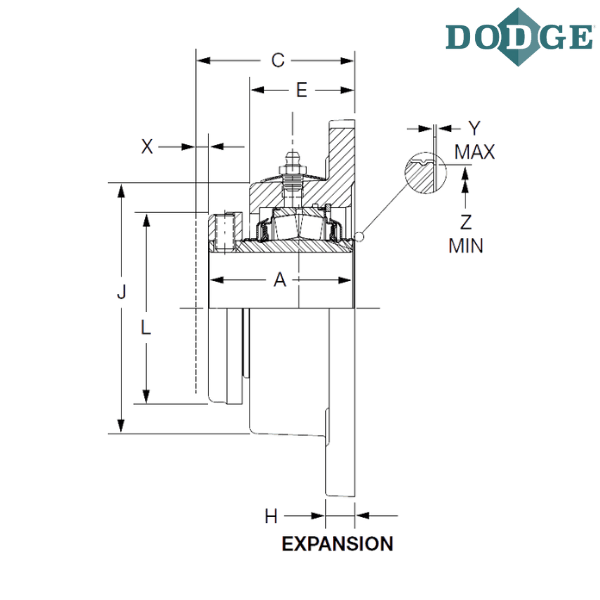

A (inch) - 2.67
B (inch) - 6.38
C (inch) - 2.97
D (inch) - 3.89
DD (inch) - 5.5
E (inch) - 1.89
Bolt Diameter (F) inch - 0.5**
H (inch) - 0.5
J (inch) - 4.34
L (inch) - 3.19
Total Expansion (X) inch - 0.25
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4-Bolt, Cast Iron, Round
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** 4 Equally spaced bolt holes

*** Images are for representation purposes only
