070524 DODGE - F3R-S2-107LE

Brand - DODGE
Item Number - 070524 DODGE - F3R-S2-107LE
Category - S-2000 Flange Bearing - Round in Labyrinth Seal (Expansion)
Bearing Series - 22208
Shaft Size (inch) - 1.4375
Part Name - F3R-S2-107LE

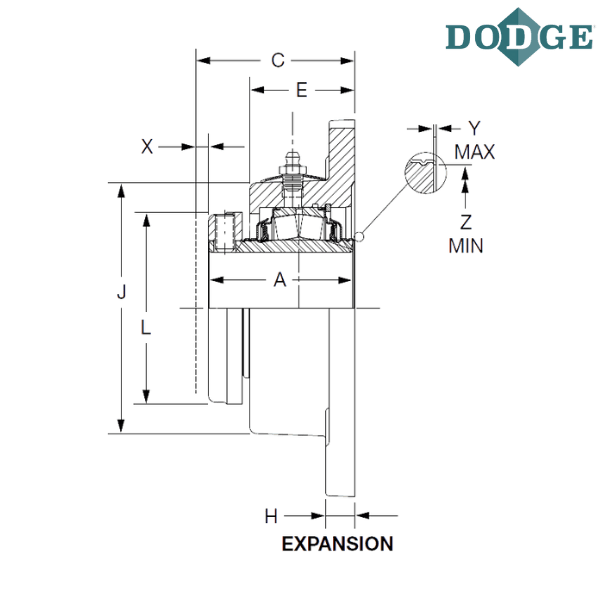

A (inch) - 2.53
B (inch) - 5.88
C (inch) - 2.77
D (inch) - 3.53
DD (inch) - 5
E (inch) - 1.8
Bolt Diameter (F) inch - 0.5*
H (inch) - 0.5
J (inch) - 3.84
L (inch) - 2.75
Total Expansion (X) inch - 0.1875
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F3R - Flange Bearing 3-Bolt, Cast Iron, Round
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

* 3 Equally spaced bolt holes

** Images are for representation purposes only
