070499 DODGE - F4R-S2-203L

Brand - DODGE
Item Number - 070499 DODGE - F4R-S2-203L
Category - S-2000 Flange Bearing - Round in Labyrinth Seal (Non-Expansion)
Bearing Series - 22211
Shaft Size (inch) - 2.1875
Part Name - F4R-S2-203L

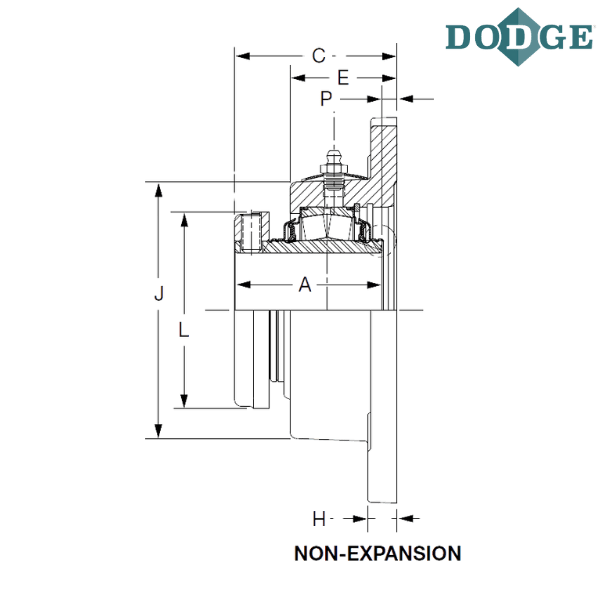

Length Through Bore (A) inch - 2.94
Overall Length (B) inch - 7.38
Thickness (C) inch - 3.23
Bolt Center to Center Length (D) inch - 4.5
DD (inch) - 6.38
E (inch) - 2.05
F-Bolt Diameter (inch) - 0.625**
H (inch) - 0.56
J (inch) - 4.98
L (inch) - 3.75
P (inch) - 0.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4-Bolt, Cast Iron, Round
S2 - S-2000
L - Labyrinth Metallic Seal

** 4 Equally spaced bolt holes

*** Images are for representation purposes only
