070474 DODGE - F4R-S2-111RE

Brand - DODGE
Item Number - 070474 DODGE - F4R-S2-111RE
Category - S-2000 Flange Bearing - Round in Trident Seal (Expansion)
Bearing Series - 22209
Shaft Size (inch) - 1.6875
Part Name - F4R-S2-111RE

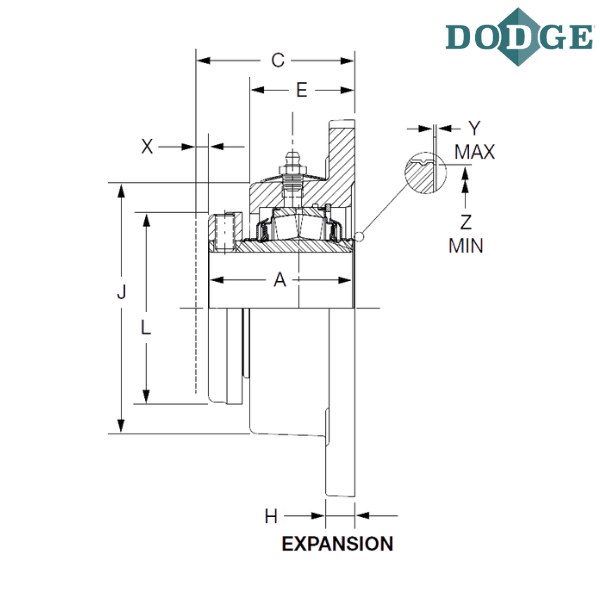

Length Through Bore (A) inch - 2.67
Overall Length (B) inch - 6.38
Thickness (C) inch - 2.97
Bolt Center to Center Length (D) inch - 3.89
DD (inch) - 5.5
E (inch) - 1.89
F-Bolt Diameter (inch) - 0.5**
H (inch) - 0.5
J (inch) - 4.34
L (inch) - 3.19
Total Expansion (X) inch - 0.25
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4-Bolt, Cast Iron, Round
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** 4 Equally spaced bolt holes

*** Images are for representation purposes only
