070470 DODGE - F3R-S2-106RE

Brand - DODGE
Item Number - 070470 DODGE - F3R-S2-106RE
Category - S-2000 Flange Bearing - Round in Trident Seal (Expansion)
Bearing Series - 22208
Shaft Size (inch) - 1.375
Part Name - F3R-S2-106RE

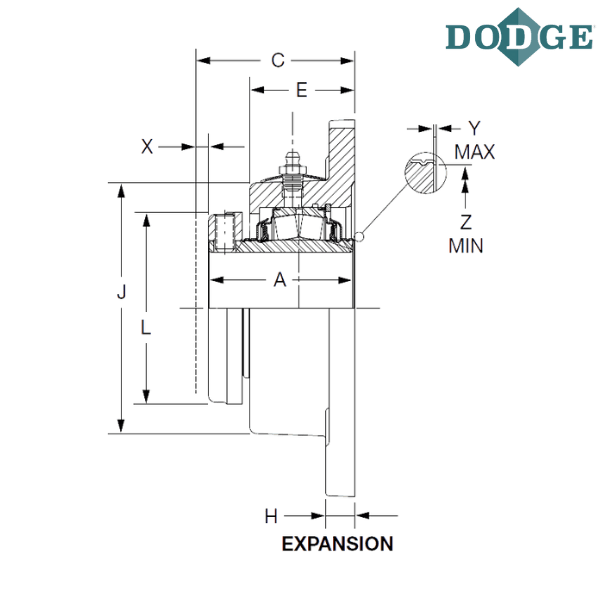

Length Through Bore (A) inch - 2.53
Overall Length (B) inch - 5.88
Thickness (C) inch - 2.77
Bolt Center to Center Length (D) inch - 3.53
DD (inch) - 5
E (inch) - 1.8
F-Bolt Diameter (inch) - 0.5*
H (inch) - 0.5
J (inch) - 3.84
L (inch) - 2.75
Total Expansion (X) inch - 0.1875
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F3R - Flange Bearing 3-Bolt, Cast Iron, Round
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* 3 Equally spaced bolt holes

** Images are for representation purposes only
