070349 DODGE - P2B-S2-203LE

Brand - DODGE
Item Number - 070349 DODGE - P2B-S2-203LE
Category - 2-Bolt Base S-2000 Pillow Block - Inch in Labyrinth Seal (Expansion)
Bearing Series - 22211
Shaft Size (inch) - 2.1875
Part Name - P2B-S2-203LE

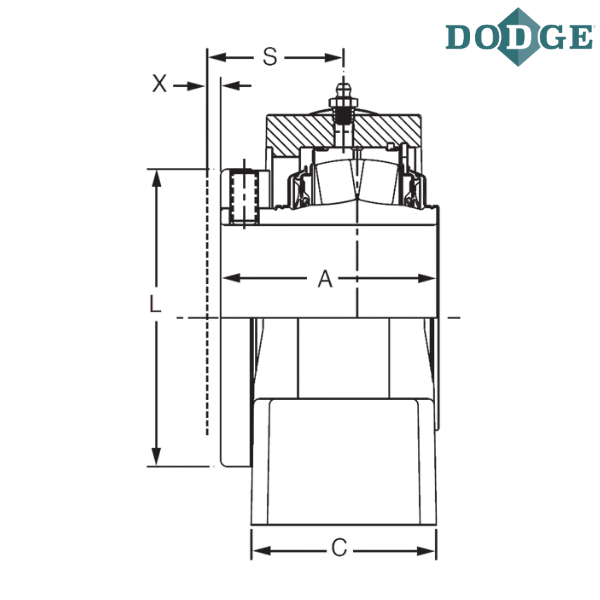

Length Through Bore (A) inch - 2.94
Overall Length (B) inch - 8.88
C (inch) - 2.63
Bolt to Bolt Minimum Distance (D min) inch - 6.56
Bolt to Bolt Maximum Distance (D max) inch - 6.94
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.95
H (inch) - 1.5
Overall Height (J) inch - 5
L (inch) - 3.75
Base to Center Height (M) inch - 2.5
S (inch) - 2.03
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
