070348 DODGE - P2B-S2-200LE

Brand - DODGE
Item Number - 070348 DODGE - P2B-S2-200LE
Category - 2-Bolt Base S-2000 Pillow Block - Inch in Labyrinth Seal (Expansion)
Bearing Series - 22210
Shaft Size (inch) - 2
Part Name - P2B-S2-200LE

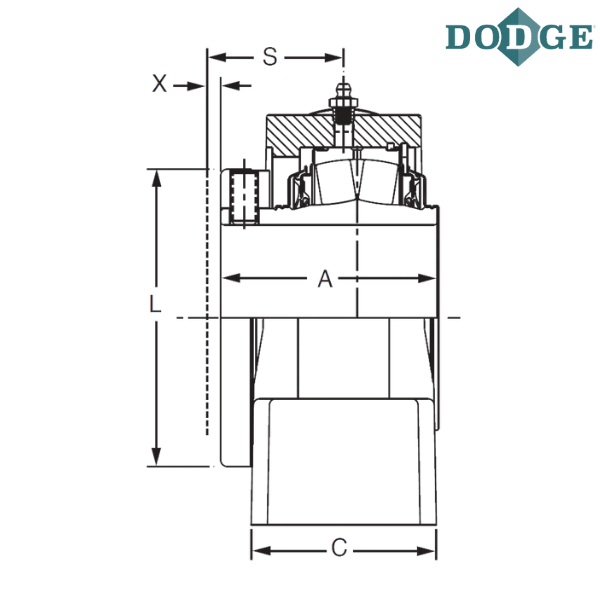

Length Through Bore (A) inch - 2.84
Overall Length (B) inch - 8.38
C (inch) - 2.5
Bolt to Bolt Minimum Distance (D min) inch - 6.06
Bolt to Bolt Maximum Distance (D max) inch - 6.44
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.95
H (inch) - 1.31
Overall Height (J) inch - 4.56
L (inch) - 3.44
Base to Center Height (M) inch - 2.25
S (inch) - 1.98
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
