070307 DODGE - P2B-S2-211RE

Brand - DODGE
Item Number - 070307 DODGE - P2B-S2-211RE
Category - 2-Bolt Base S-2000 Pillow Block - Inch in Trident Seal (Expansion)
Bearing Series - 22215
Shaft Size (inch) - 2.6875
Part Name - P2B-S2-211RE

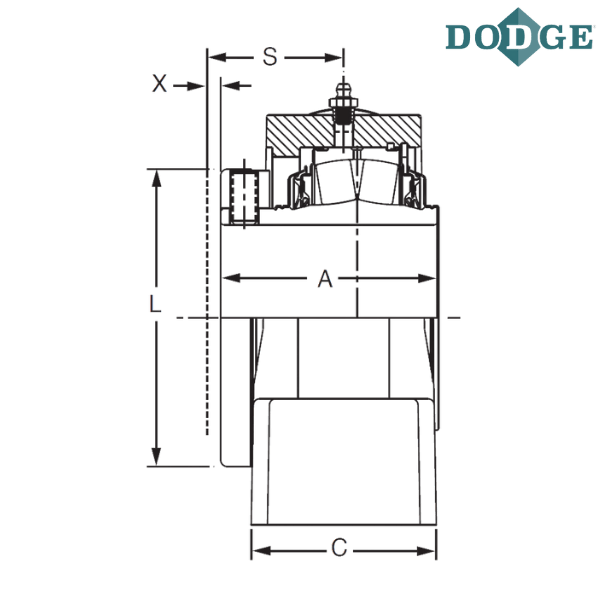

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 10.44
C (inch) - 3.08
Bolt to Bolt Minimum Distance (D min) inch - 7.94
Bolt to Bolt Maximum Distance (D max) inch - 8.31
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.06
H (inch) - 1.88
Overall Height (J) inch - 6.38
L (inch) - 4.7
Base to Center Height (M) inch - 3.25
S (inch) - 2.45
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
