070299 DODGE - P2B-S2-111RE

Brand - DODGE
Item Number - 070299 DODGE - P2B-S2-111RE
Category - 2-Bolt Base S-2000 Pillow Block - Inch in Trident Seal (Expansion)
Bearing Series - 22209
Shaft Size (inch) - 1.6875
Part Name - P2B-S2-111RE

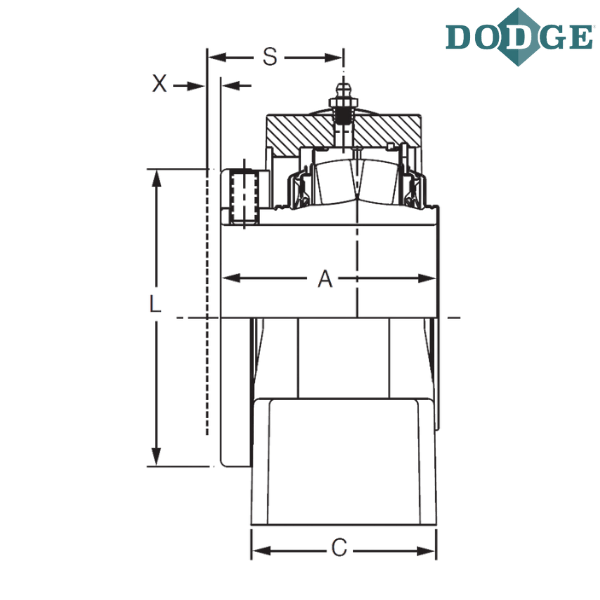

Length Through Bore (A) inch - 2.67
Overall Length (B) inch - 7.38
C (inch) - 2.06
Bolt to Bolt Minimum Distance (D min) inch - 5.31
Bolt to Bolt Maximum Distance (D max) inch - 5.7
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.81
H (inch) - 1.25
Overall Height (J) inch - 4.27
L (inch) - 3.19
Base to Center Height (M) inch - 2.13
S (inch) - 1.86
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
