070093 DODGE - P4B528-ISAF-415LE

Brand - DODGE
Item Number - 070093 DODGE - P4B528-ISAF-415LE
Category - IMPERIAL ISAF 4-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (inch) - 4.9375
Part Name - P4B528-ISAF-415LE
SAF Series - 528

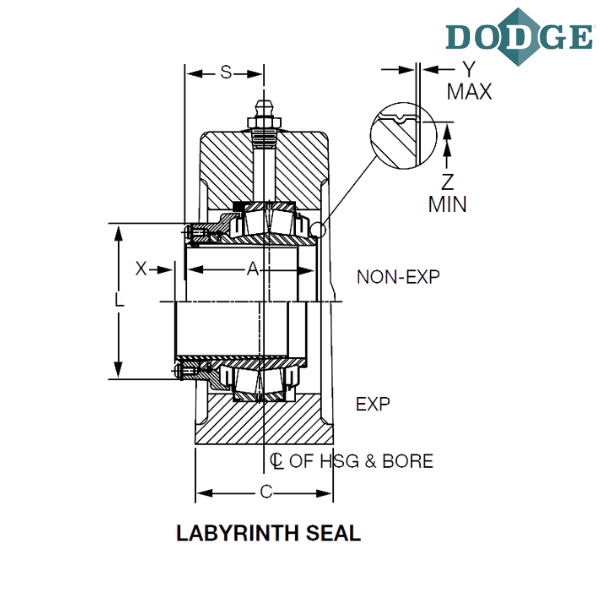

Length Through Bore (A) inch - 5.98

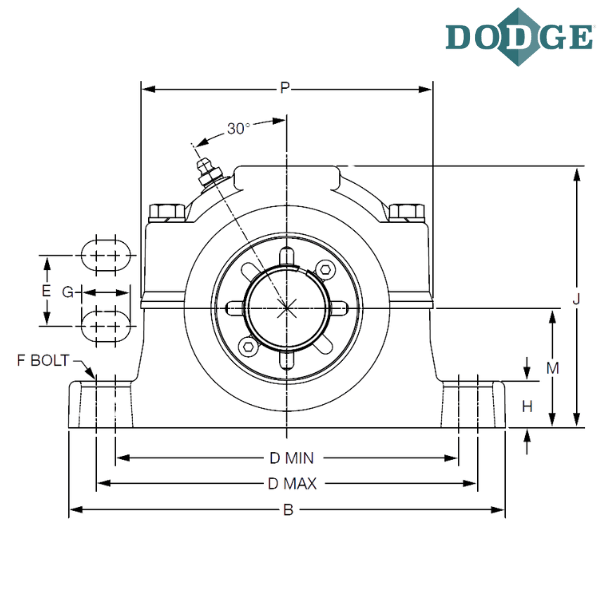

Overall Length (B) inch - 19.7
Width (C) inch - 5.88
Bolt to Bolt Minimum Distance (D min) inch - 15.63
Bolt to Bolt Maximum Distance (D max) inch - 17.38
E (inch) - 3.38
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.06
Overall Height (J) inch - 12.41
L (inch) - 7.63
Base to Center Height (M) inch - 6
P (inch) - 13.38
S (inch) - 3.69
Expansion (X) inch - 0.375
Y (inch) - 0.04
Z (inch) - 5.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
L - Labyrinth Metallic Seal
E - Expansion

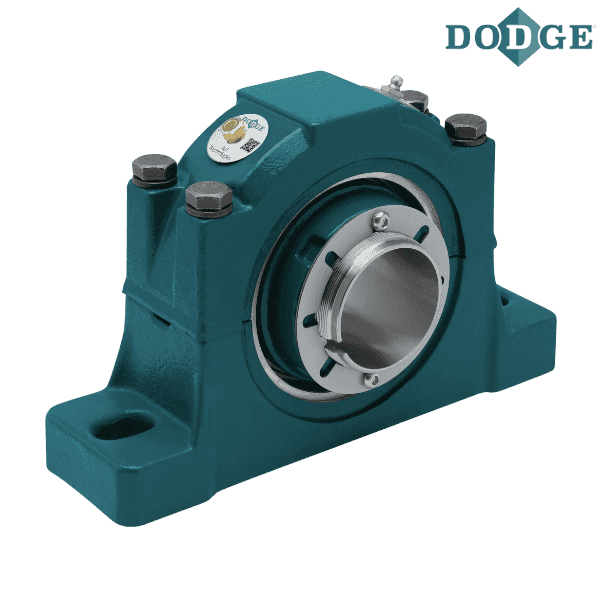

** Images are for representation purposes only
