070066 DODGE - P2B511-ISAF-115RE

Brand - DODGE
Item Number - 070066 DODGE - P2B511-ISAF-115RE
Category - IMPERIAL ISAF - Inch 2-Bolt with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (inch) - 1.9375
Part Name - P2B511-ISAF-115RE
SAF Series - 511

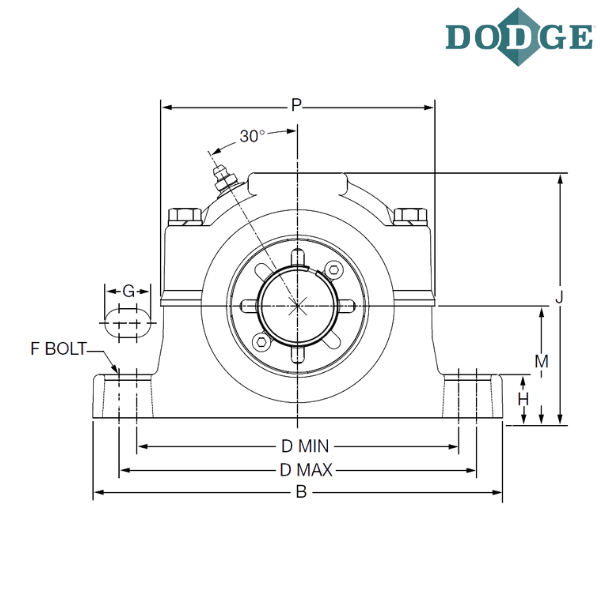

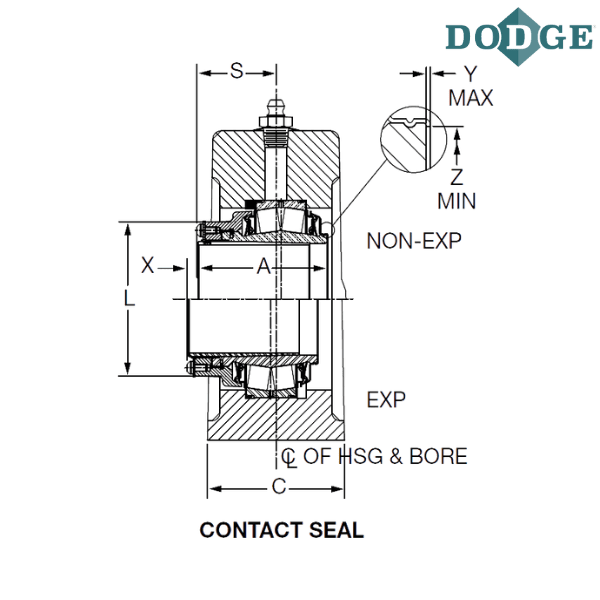

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 9.63
Width (C) inch - 2.75
Bolt to Bolt Minimum Distance (D min) inch - 7.38
Bolt to Bolt Maximum Distance (D max) inch - 8.25
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.2
H (inch) - 1.03
Overall Height (J) inch - 5.97
L (inch) - 3.28
Base to Center Height (M) inch - 2.75
P (inch) - 6.38
S (inch) - 1.73
Expansion (X) inch - 0.265625
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base Cast Iron
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Contact Seal
E - Expansion

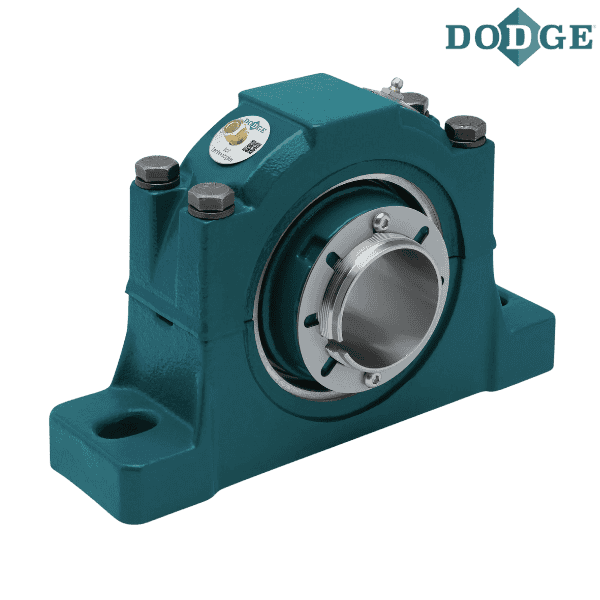

** Images are for representation purposes only
