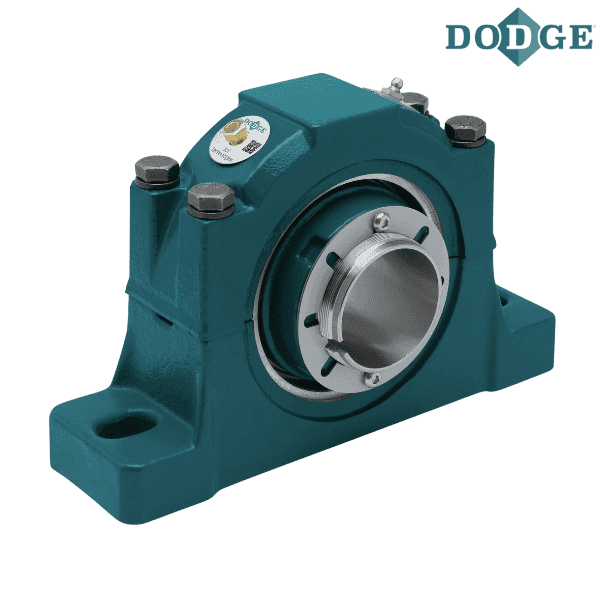

070064 DODGE - P2B509-ISAF-107RE

Brand - DODGE
Item Number - 070064 DODGE - P2B509-ISAF-107RE
Category - IMPERIAL ISAF - Inch 2-Bolt with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22208
Shaft Size (inch) - 1.4375
Part Name - P2B509-ISAF-107RE
SAF Series - 509

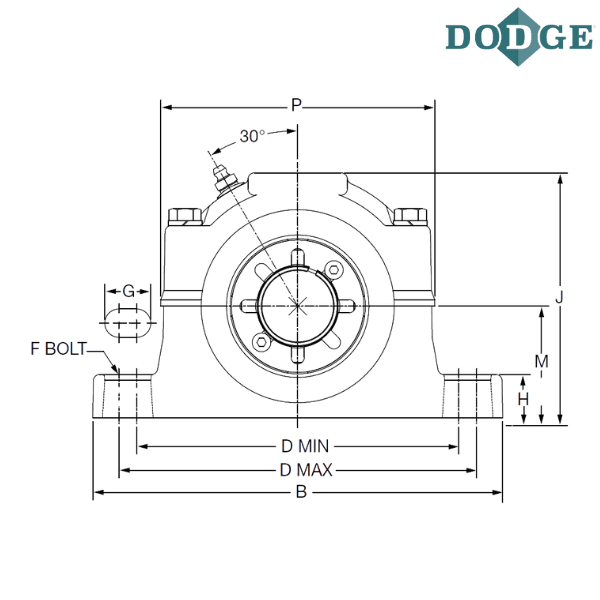

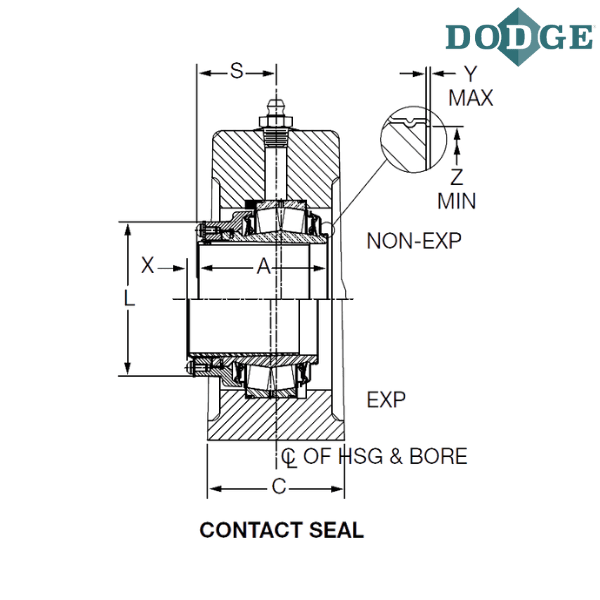

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 8.25
Width (C) inch - 2.19
Bolt to Bolt Minimum Distance (D min) inch - 6.25
Bolt to Bolt Maximum Distance (D max) inch - 7
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.88
Overall Height (J) inch - 4.94
L (inch) - 2.72
Base to Center Height (M) inch - 2.25
P (inch) - 5.52
S (inch) - 1.53
Expansion (X) inch - 0.21875
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base Cast Iron
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Contact Seal
E - Expansion

** Images are for representation purposes only
