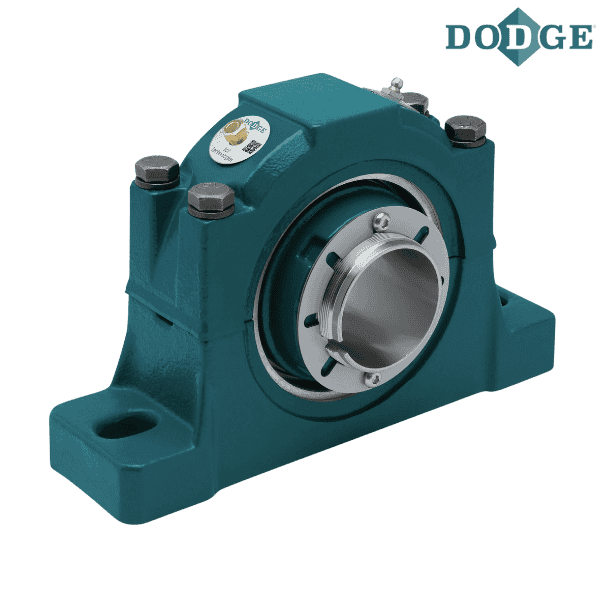

070055 DODGE - P2B510-ISAF-111R

Brand - DODGE
Item Number - 070055 DODGE - P2B510-ISAF-111R
Category - IMPERIAL ISAF - Inch 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (inch) - 1.6875
Part Name - P2B510-ISAF-111R
SAF Series - 510

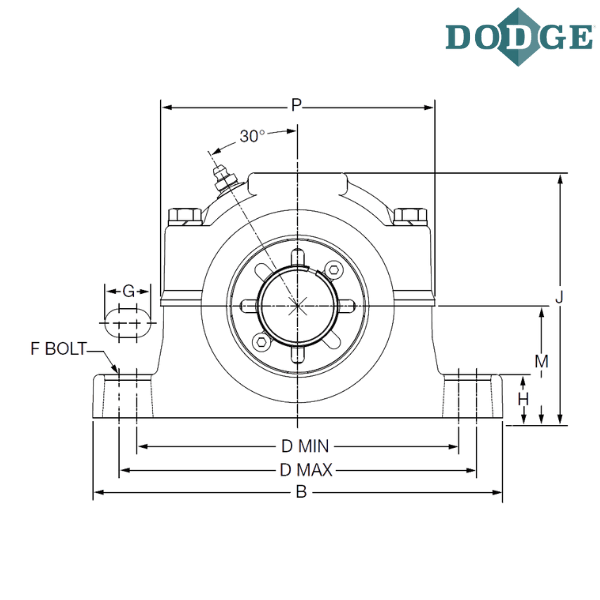

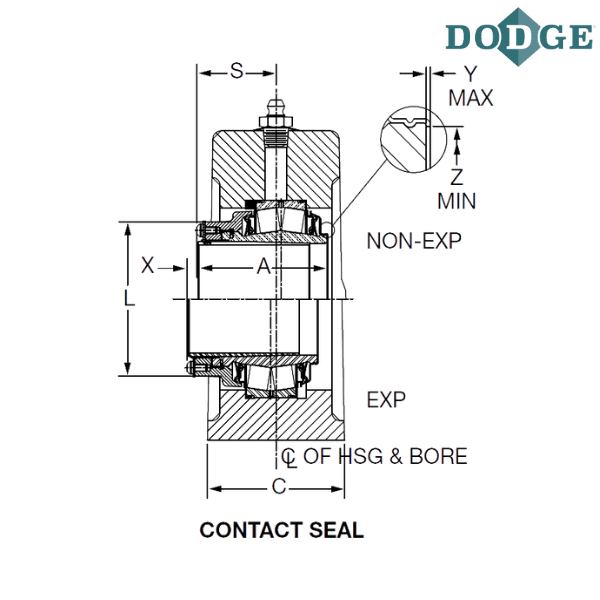

Length Through Bore (A) inch - 2.8
Overall Length (B) inch - 8.25
Width (C) inch - 2.38
Bolt to Bolt Minimum Distance (D min) inch - 6.5
Bolt to Bolt Maximum Distance (D max) inch - 7
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.88
H (inch) - 1.03
Overall Height (J) inch - 5.45
L (inch) - 3
Base to Center Height (M) inch - 2.5
P (inch) - 5.81
S (inch) - 1.73
Expansion (X) inch - 0.21875
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base Cast Iron
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
