069864 DODGE - FC-IP-400RE

Brand - DODGE
Item Number - 069864 DODGE - FC-IP-400RE
Category - IMPERIAL - IP Piloted Flange (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22220
Shaft Size (inch) - 4
Part Name - FC-IP-400RE

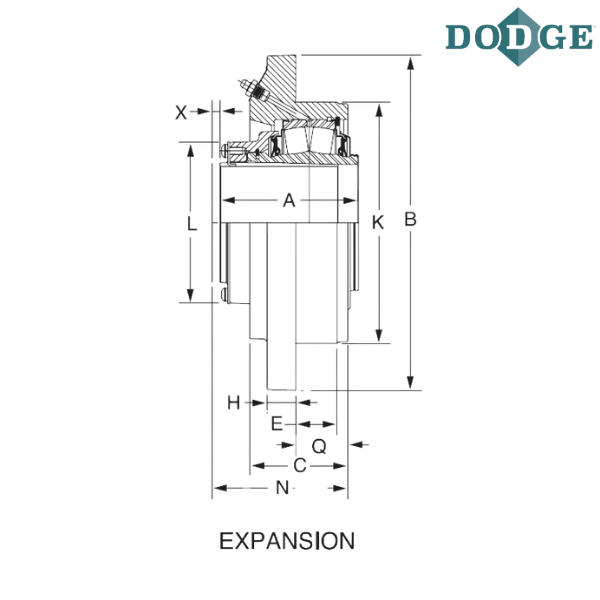

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 10.88
C (inch) - 3.5

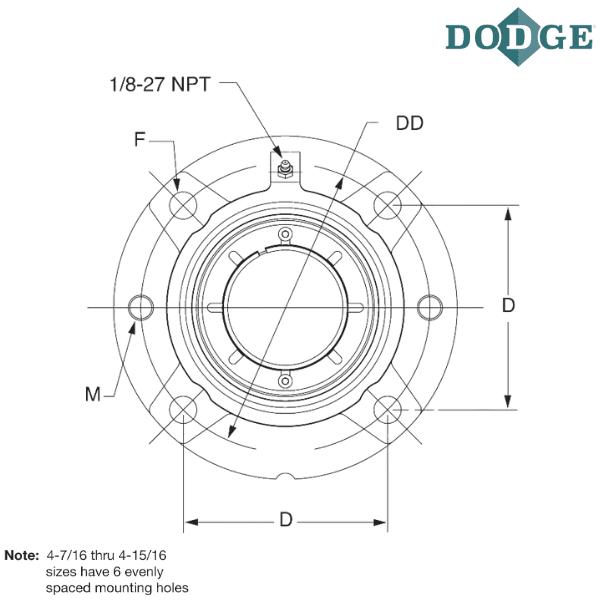

Bolt to Bolt Distance (D) inch - 6.63
Bolt Circle (DD) inch - 9.38
E (inch) - 1.47
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.13
Pilot Diameter (K*) inch - 8.125
L (inch) - 5.56
M (inch) - 3/4-10
N (inch) - 4.39
Pilot Depth (Q) inch - 1.91
Total Expansion (X) inch - 0.3125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000”, -0.002”

** Images are for representation purposes only
