069859 DODGE - FC-IP-304RE

Brand - DODGE
Item Number - 069859 DODGE - FC-IP-304RE
Category - IMPERIAL - IP Piloted Flange (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.25
Part Name - FC-IP-304RE

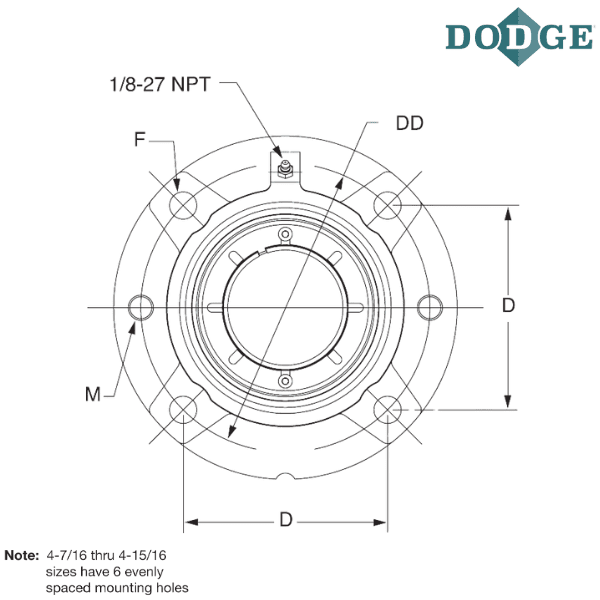

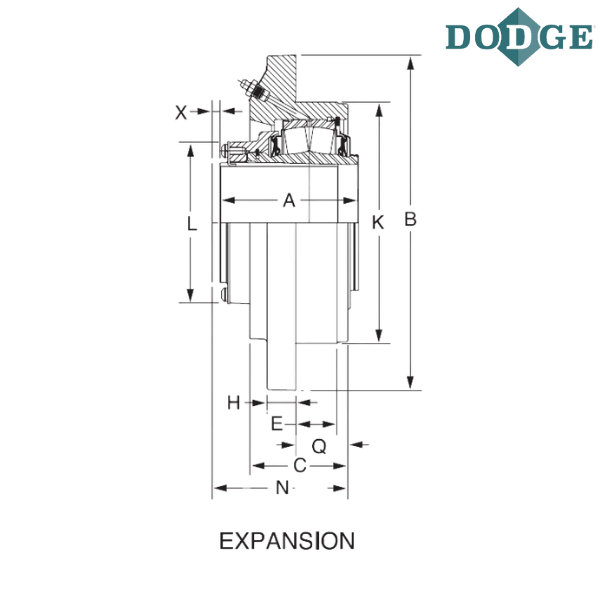

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 10.25
C (inch) - 3
Bolt to Bolt Distance (D) inch - 6.09
Bolt Circle (DD) inch - 8.63
E (inch) - 1.27
F-Bolt Diameter (inch) - 0.75
H (inch) - 0.94
Pilot Diameter (K*) inch - 7.375
L (inch) - 5
M (inch) - 3/4-10
N (inch) - 4.06
Pilot Depth (Q) inch - 1.52
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000”, -0.002”

** Images are for representation purposes only
