069844 DODGE - FC-IP-111RE

Brand - DODGE
Item Number - 069844 DODGE - FC-IP-111RE
Category - IMPERIAL - IP Piloted Flange (Trident Seal - Expansion)
Type - Push-Pull Aadpter
Bearing - 22209
Shaft Size (inch) - 1.6875
Part Name - FC-IP-111RE

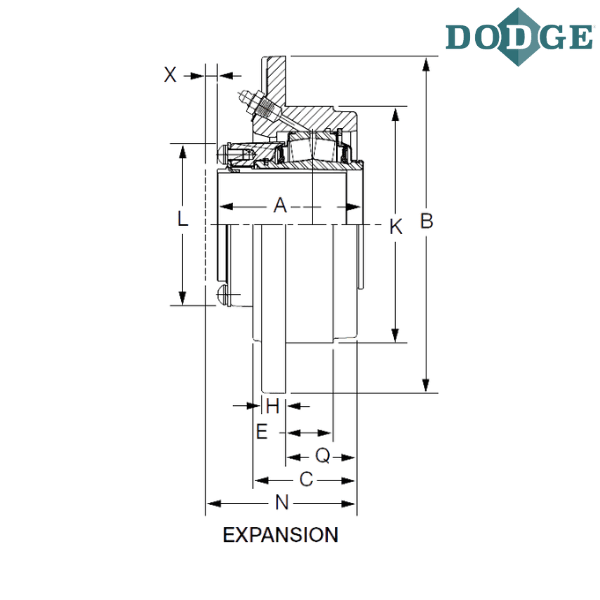

Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 6.13
C (inch) - 1.91

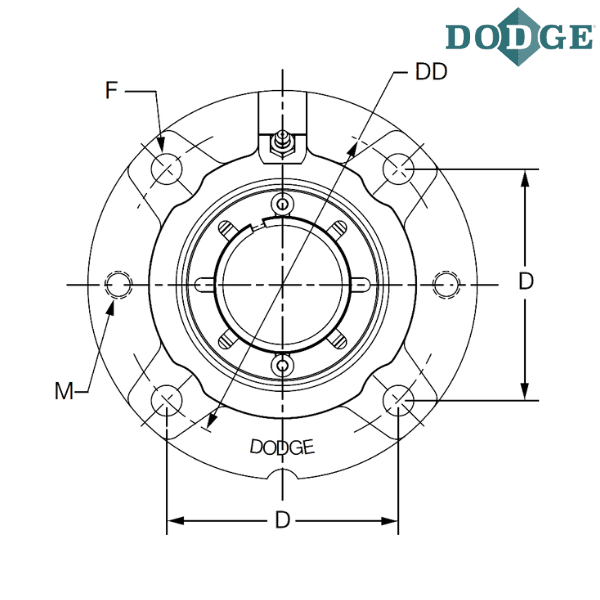

Bolt to Bolt Distance (D) inch - 3.63
Bolt Circle (DD) inch - 5.13
E (inch) - 0.88
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
Pilot Diameter (K*) inch - 4.25
L (inch) - 3
M (inch) - 7/16-14
N (inch) - 2.86
Pilot Depth (Q) inch - 1.27
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000”, -0.002”

** Images are for representation purposes only
