069838 DODGE - FC-IP-103RE

Brand - DODGE
Item Number - 069838 DODGE - FC-IP-103RE
Category - IMPERIAL - IP Piloted Flange (Trident Seal - Expansion)
Type - Push-Pull Aadpter
Bearing - 22208
Shaft Size (inch) - 1.1875
Part Name - FC-IP-103RE

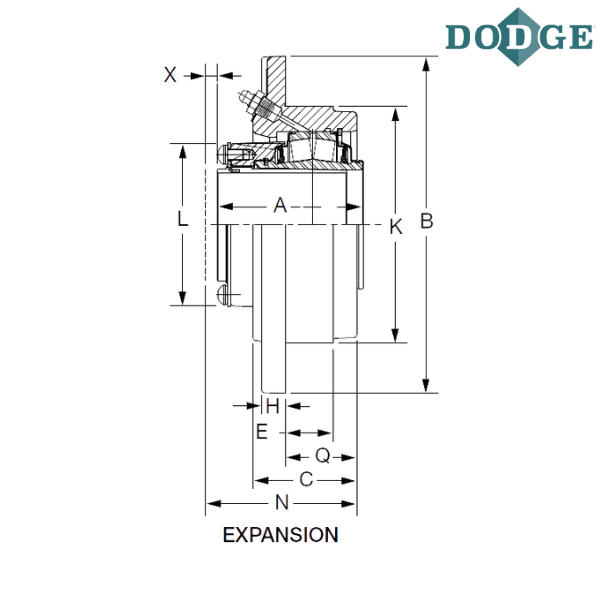

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 5.25
C (inch) - 1.84

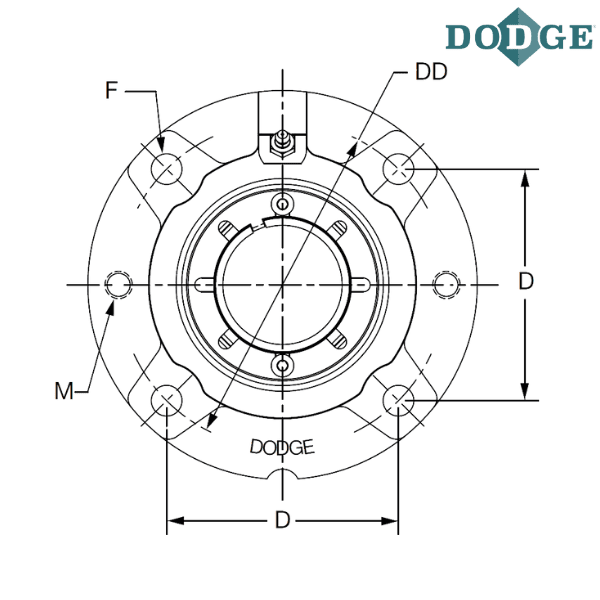

Bolt to Bolt Distance (D) inch - 3.09
Bolt Circle (DD) inch - 4.38
E (inch) - 0.75
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.5
Pilot Diameter (K*) inch - 3. 625
L (inch) - 2.72
M (inch) - 3/8-16
N (inch) - 2.61
Pilot Depth (Q) inch - 1.22
Total Expansion (X) inch - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000”, -0.002”

** Images are for representation purposes only
