069836 DODGE - FC-IP-500R

Brand - DODGE
Item Number - 069836 DODGE - FC-IP-500R
Category - IMPERIAL - IP Piloted Flange (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (inch) - 5
Part Name - FC-IP-500R

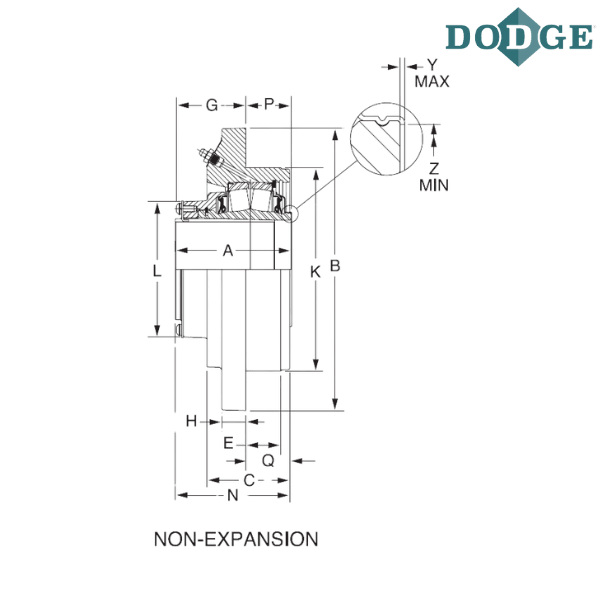

Length Through Bore (A) inch - 5.98
Overall Length (B) inch - 14.75
C (inch) - 4.38

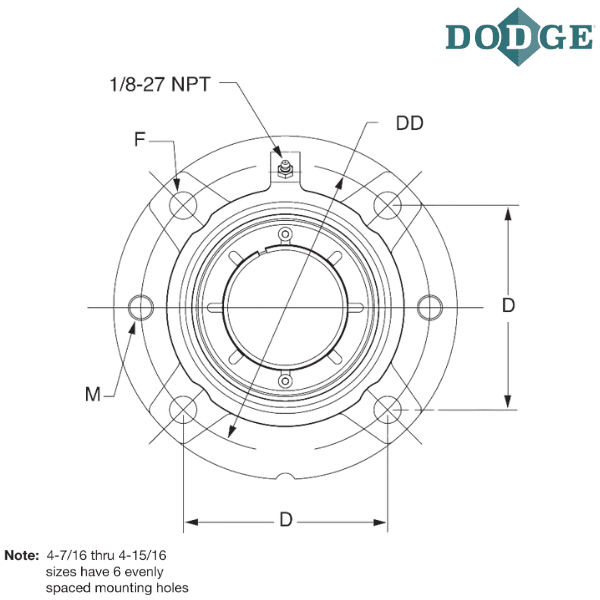

Bolt to Bolt Distance (D) inch - 6.38
Bolt Circle (DD) inch - 12.75
E (inch) - 1.7
F-Bolt Diameter (inch) - 0.875**
G (inch) - 3.86
H (inch) - 1.25
Pilot Diameter (K*) inch - 11
L (inch) - 7.63
M (inch) - 3/4-10
N (inch) - 6.28
P (inch) - 2.13
Pilot Depth (Q) inch - 2.42
Y (inch) - 0.04
Z (inch) - 5.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000”, -0.002”
** 6 equally spaced mounting holes

*** Images are for representation purposes only
