069830 DODGE - FC-IP-311R

Brand - DODGE
Item Number - 069830 DODGE - FC-IP-311R
Category - IMPERIAL - IP Piloted Flange (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22220
Shaft Size (inch) - 3.6875
Part Name - FC-IP-311R

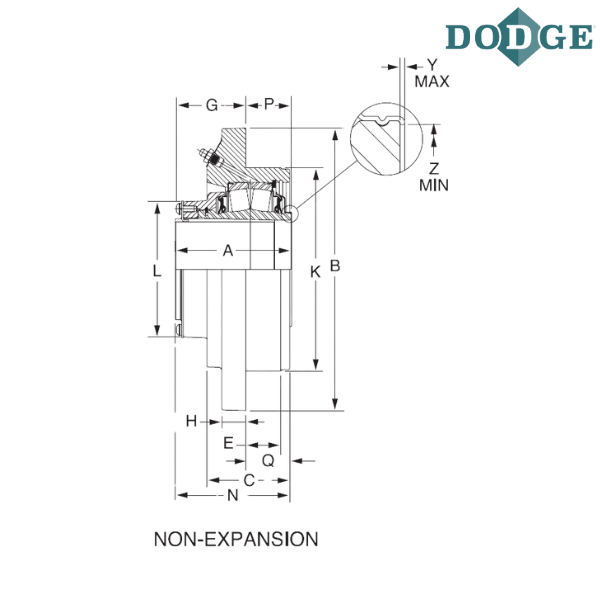

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 10.88
C (inch) - 3.5

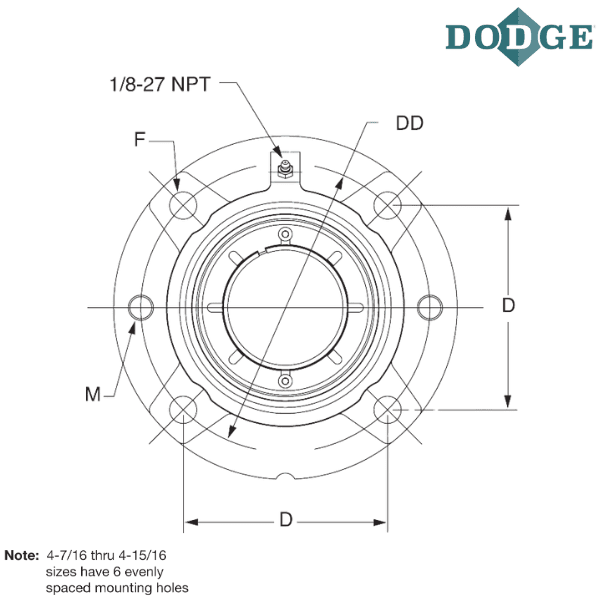

Bolt to Bolt Distance (D) inch - 6.63
Bolt Circle (DD) inch - 9.38
E (inch) - 1.47
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.89
H (inch) - 1.13
Pilot Diameter (K*) inch - 8.125
L (inch) - 5.56
M (inch) - 3/4-10
N (inch) - 4.39
P (inch) - 1.81
Pilot Depth (Q) inch - 1.91
Y (inch) - 0.03
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000”, -0.002”

** Images are for representation purposes only
