069818 DODGE - FC-IP-204R

Brand - DODGE
Item Number - 069818 DODGE - FC-IP-204R
Category - IMPERIAL - IP Piloted Flange (Trident Seal - Non-Expansion)
Type - Push-Pull Aadpter
Bearing - 22211
Shaft Size (inch) - 2.25
Part Name - FC-IP-204R

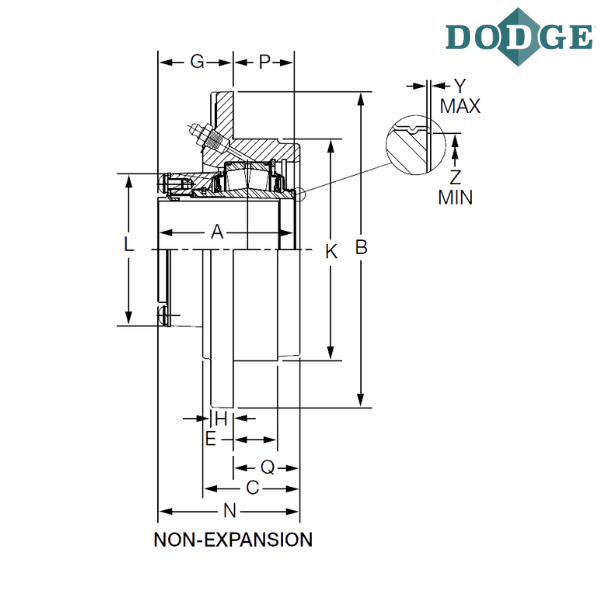

Length Through Bore (A) inch - 3.03
Overall Length (B) inch - 7.13
C (inch) - 2.19
Bolt to Bolt Distance (D) inch - 4.25

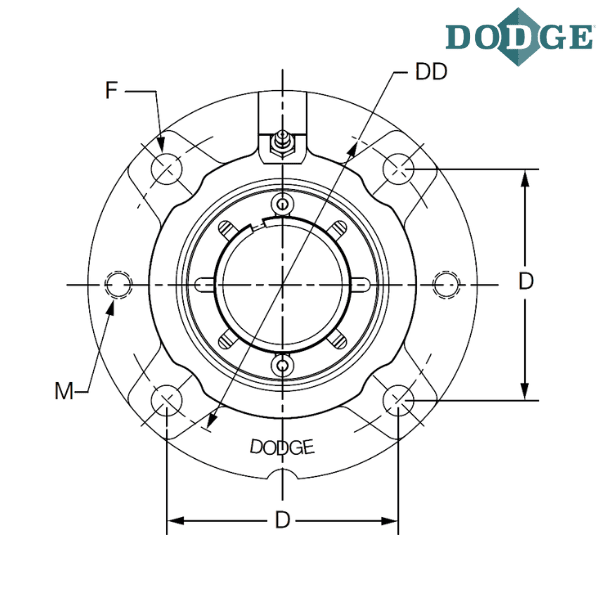

Bolt Circle (DD) inch - 6
E (inch) - 1
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.67
H (inch) - 0.56
Pilot Diameter (K*) inch - 5
L (inch) - 3.5
M (inch) - 1/2-13
N (inch) - 3.08
P (inch) - 1.38
Pilot Depth (Q) inch - 1.42
Y (inch) - 0.03
Z (inch) - 2.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000”, -0.002”

** Images are for representation purposes only
