069782 DODGE - F4S-IP-108LE

Brand - DODGE
Item Number - 069782 DODGE - F4S-IP-108LE
Category - IMPERIAL - IP Flange - Square with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22208
Shaft Size (inch) - 1.5
Part Name - F4S-IP-108LE

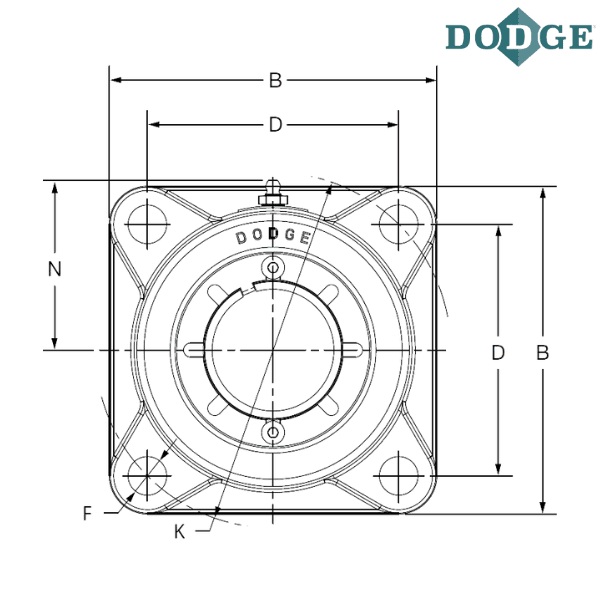

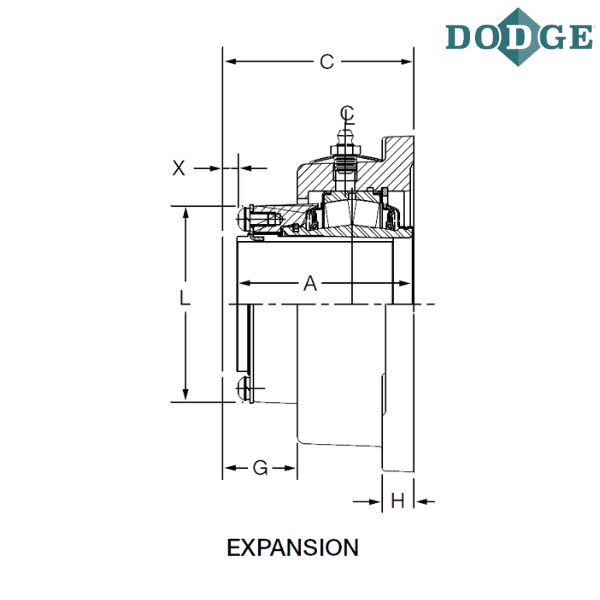

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 4.75
Thickness (C) inch - 2.86
Bolt Center to Center Length (D) inch - 3.53
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.08
H (inch) - 0.5
J (inch) - 3.81
K (inch) - 5
L (inch) - 2.72
N (inch) - 2.48
Total Expansion (X) inch - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
