069775 DODGE - F4S-IP-315L

Brand - DODGE
Item Number - 069775 DODGE - F4S-IP-315L
Category - IMPERIAL - IP Flange - Square with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22220
Shaft Size (inch) - 3.9375
Part Name - F4S-IP-315L

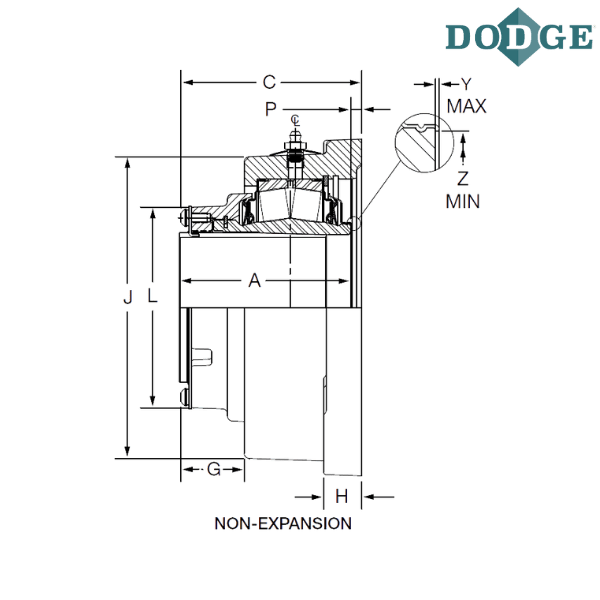

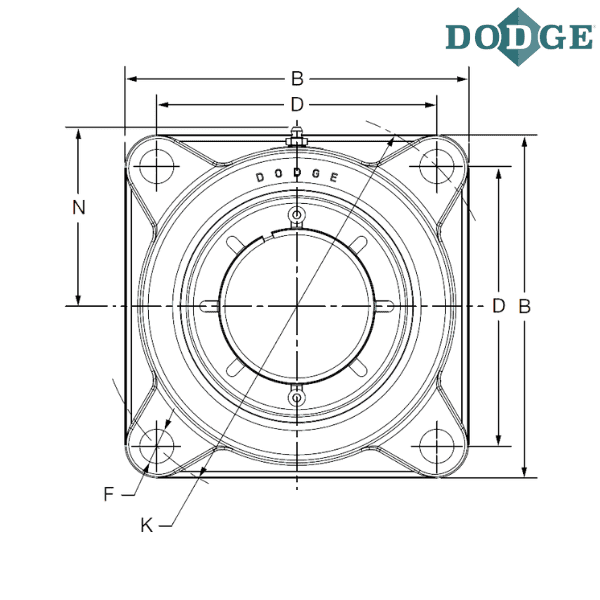

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 9.25
Thickness (C) inch - 5.08
Bolt Center to Center Length (D) inch - 7.61
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.78
H (inch) - 1.06
J (inch) - 8.22
K (inch) - 10.75
L (inch) - 5.56
N (inch) - 4.7
P (inch) - 0.38
Y (inch) - 0.03
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
L - Labyrinth Metallic Seal

** Images are for representation purposes only
