069769 DODGE - F4S-IP-300L

Brand - DODGE
Item Number - 069769 DODGE - F4S-IP-300L
Category - IMPERIAL - IP Flange - Square with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 3
Part Name - F4S-IP-300L

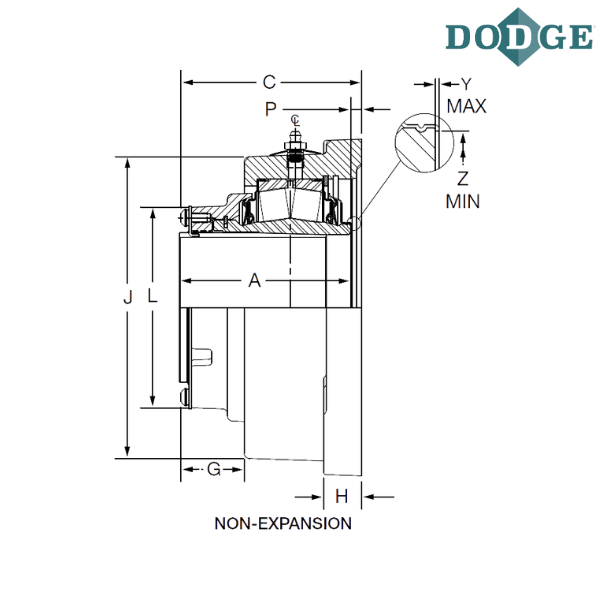

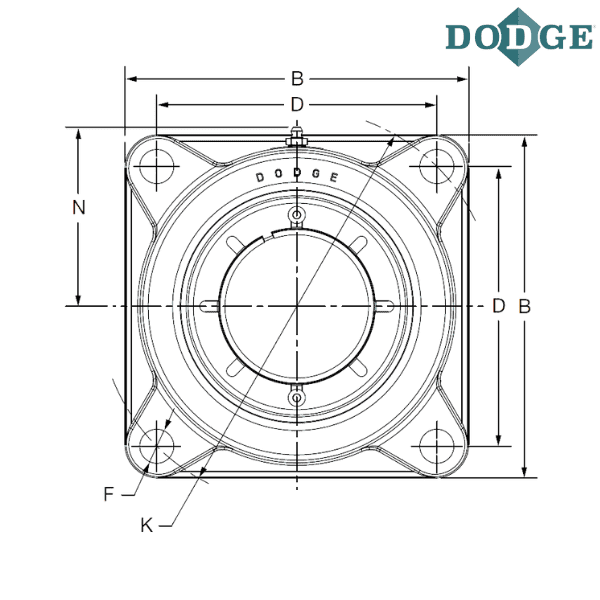

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 7.18
Thickness (C) inch - 3.81
Bolt Center to Center Length (D) inch - 5.56
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.42
H (inch) - 0.75
J (inch) - 6.5
K (inch) - 7.88
L (inch) - 4.28
N (inch) - 3.84
P (inch) - 0.31
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
L - Labyrinth Metallic Seal

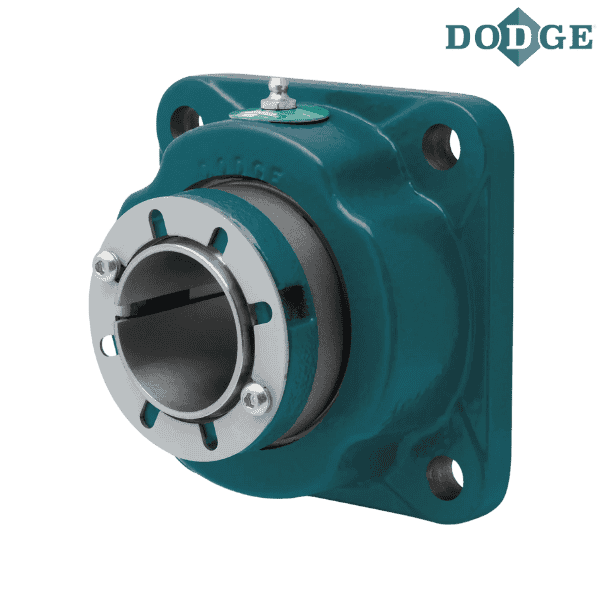

** Images are for representation purposes only
