069761 DODGE - F4S-IP-203L

Brand - DODGE
Item Number - 069761 DODGE - F4S-IP-203L
Category - IMPERIAL - IP Flange - Square with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22211
Shaft Size (inch) - 2.1875
Part Name - F4S-IP-203L

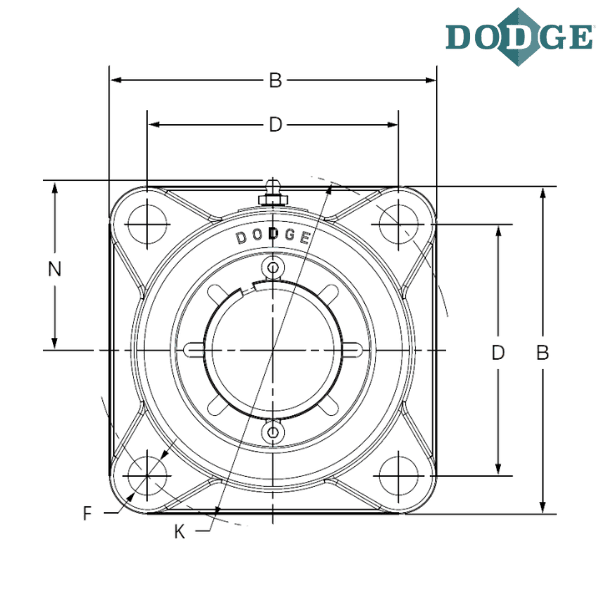

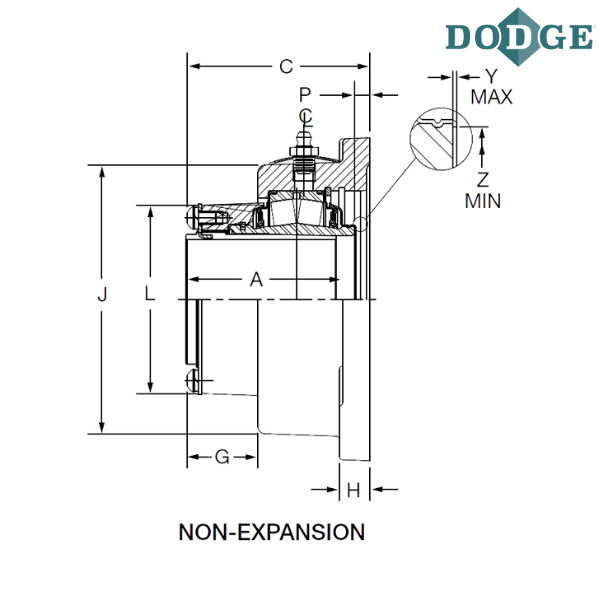

Length Through Bore (A) inch - 3.03
Overall Length (B) inch - 5.88
Thickness (C) inch - 3.34
Bolt Center to Center Length (D) inch - 4.52
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.31
H (inch) - 0.56
J (inch) - 5.02
K (inch) - 6.38
L (inch) - 3.8
N (inch) - 3.09
P (inch) - 0.31
Y (inch) - 0.02
Z (inch) - 2.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
L - Labyrinth Metallic Seal

** Images are for representation purposes only
