069758 DODGE - F4S-IP-114L

Brand - DODGE
Item Number - 069758 DODGE - F4S-IP-114L
Category - IMPERIAL - IP Flange - Square with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (inch) - 1.875
Part Name - F4S-IP-114L

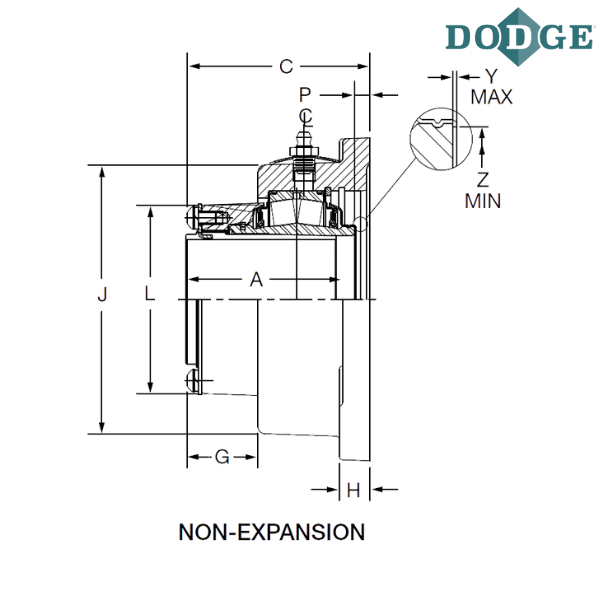

Length Through Bore (A) inch - 2.86

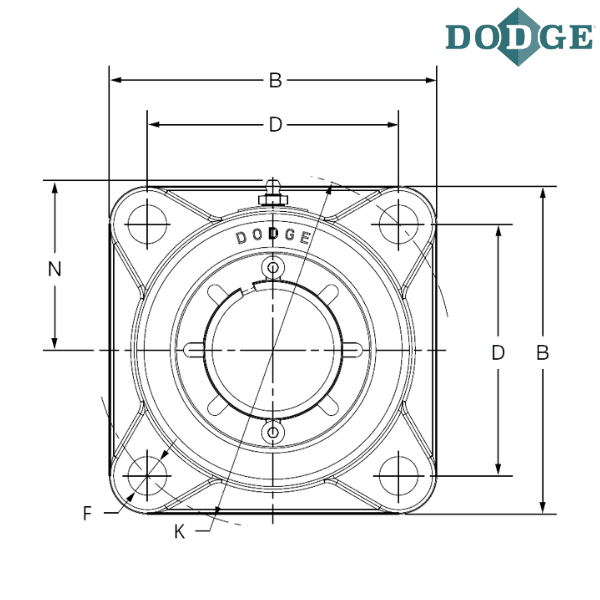

Overall Length (B) inch - 5.3
Thickness (C) inch - 3.16
Bolt Center to Center Length (D) inch - 4.06
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.23
H (inch) - 0.56
J (inch) - 4.97
K (inch) - 5.75
L (inch) - 3.28
N (inch) - 2.91
P (inch) - 0.3
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
L - Labyrinth Metallic Seal

** Images are for representation purposes only
