069742 DODGE - F4S-IP-303RE

Brand - DODGE
Item Number - 069742 DODGE - F4S-IP-303RE
Category - IMPERIAL - IP Flange - Square with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.1875
Part Name - F4S-IP-303RE

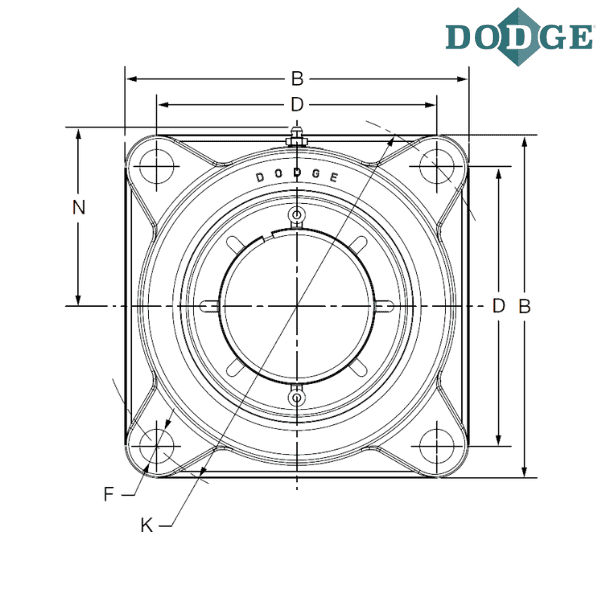

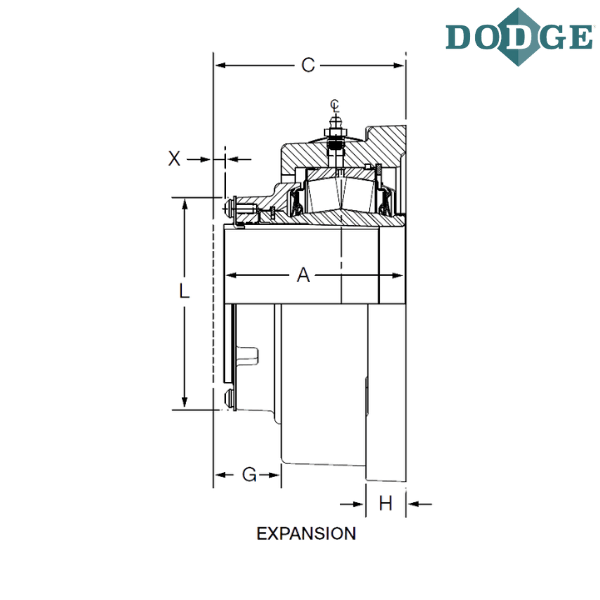

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 8.25
Thickness (C) inch - 4.48
Bolt Center to Center Length (D) inch - 6.72
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.59
H (inch) - 0.94
K (inch) - 9.5
L (inch) - 5
N (inch) - 4.33
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

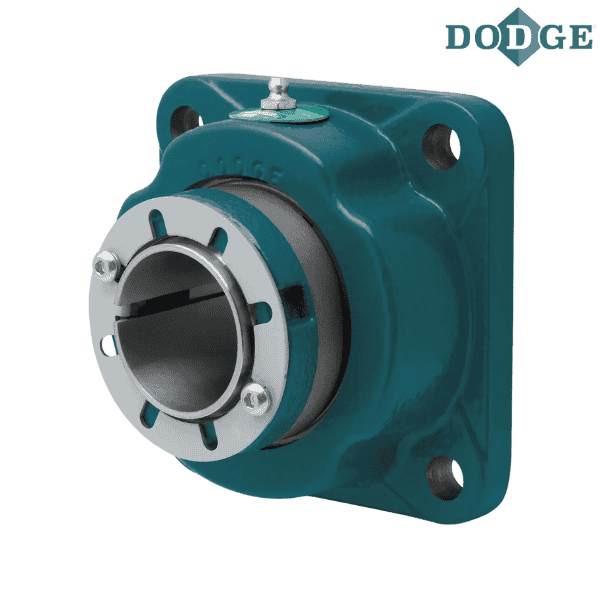

** Images are for representation purposes only
