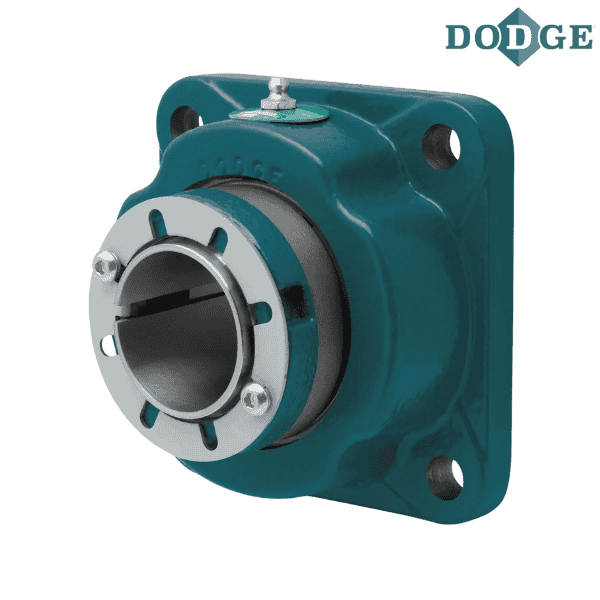

069737 DODGE - F4S-IP-208RE

Brand - DODGE
Item Number - 069737 DODGE - F4S-IP-208RE
Category - IMPERIAL - IP Flange - Square with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (inch) - 2.5
Part Name - F4S-IP-208RE

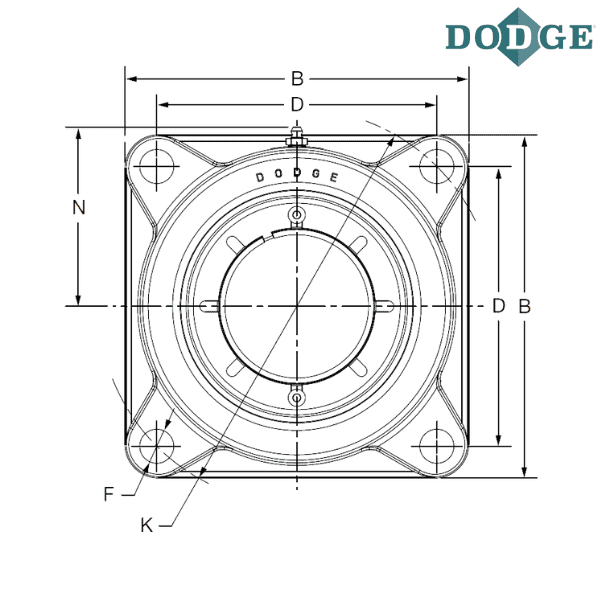

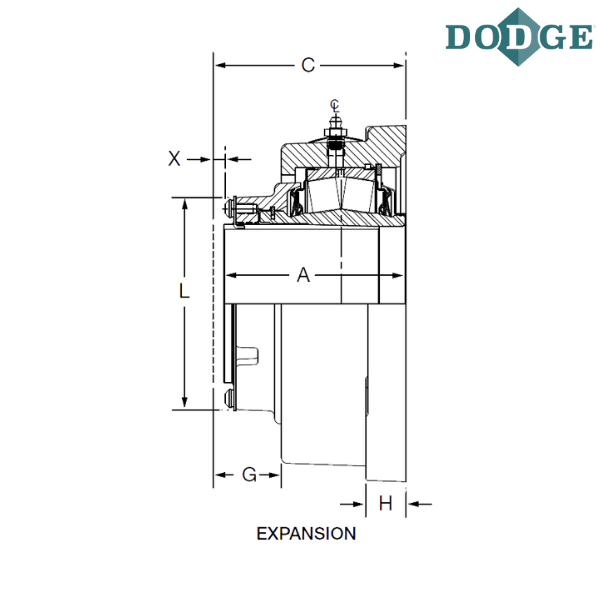

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 6.13
Thickness (C) inch - 3.73
Bolt Center to Center Length (D) inch - 4.78
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.36
H (inch) - 0.64
K (inch) - 6.75
L (inch) - 3.88
N (inch) - 3.41
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
