069730 DODGE - F4S-IP-114RE

Brand - DODGE
Item Number - 069730 DODGE - F4S-IP-114RE
Category - IMPERIAL - IP Flange - Square with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (inch) - 1.875
Part Name - F4S-IP-114RE

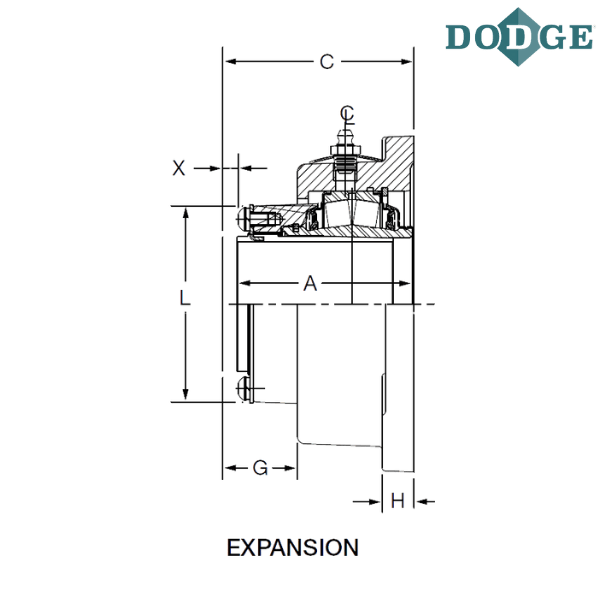

Length Through Bore (A) inch - 2.86

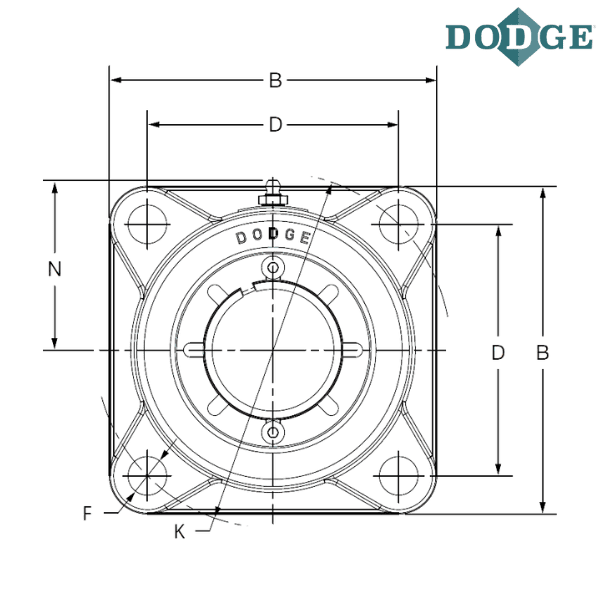

Overall Length (B) inch - 5.3
Thickness (C) inch - 3.16
Bolt Center to Center Length (D) inch - 4.06
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.23
H (inch) - 0.56
J (inch) - 4.97
K (inch) - 5.75
L (inch) - 3.28
N (inch) - 2.91
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

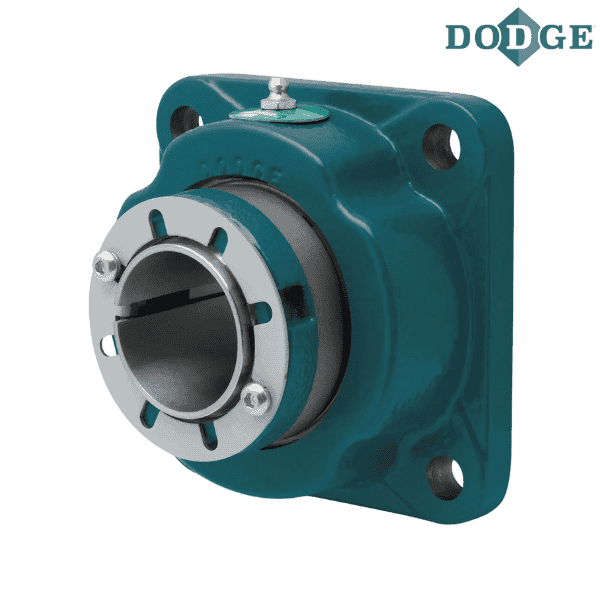

** Images are for representation purposes only
