069700 DODGE - F4S-IP-111R

Brand - DODGE
Item Number - 069700 DODGE - F4S-IP-111R
Category - IMPERIAL - IP Flange - Square with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (inch) - 1.6875
Part Name - F4S-IP-111R

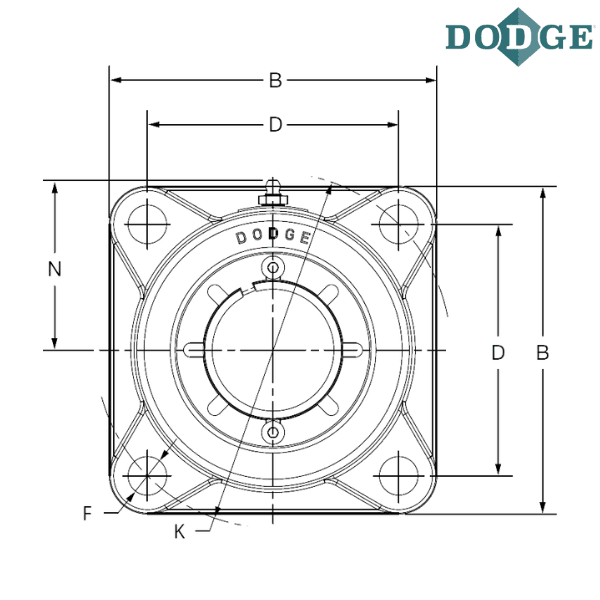

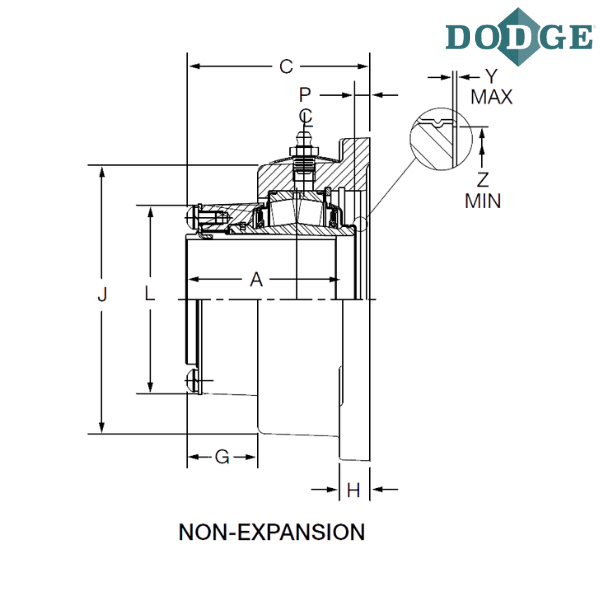

Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 5.13
Thickness (C) inch - 3.11
Bolt Center to Center Length (D) inch - 3.89
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.2
H (inch) - 0.5
J (inch) - 4.41
K (inch) - 5.5
L (inch) - 3
N (inch) - 2.78
P (inch) - 0.3
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
